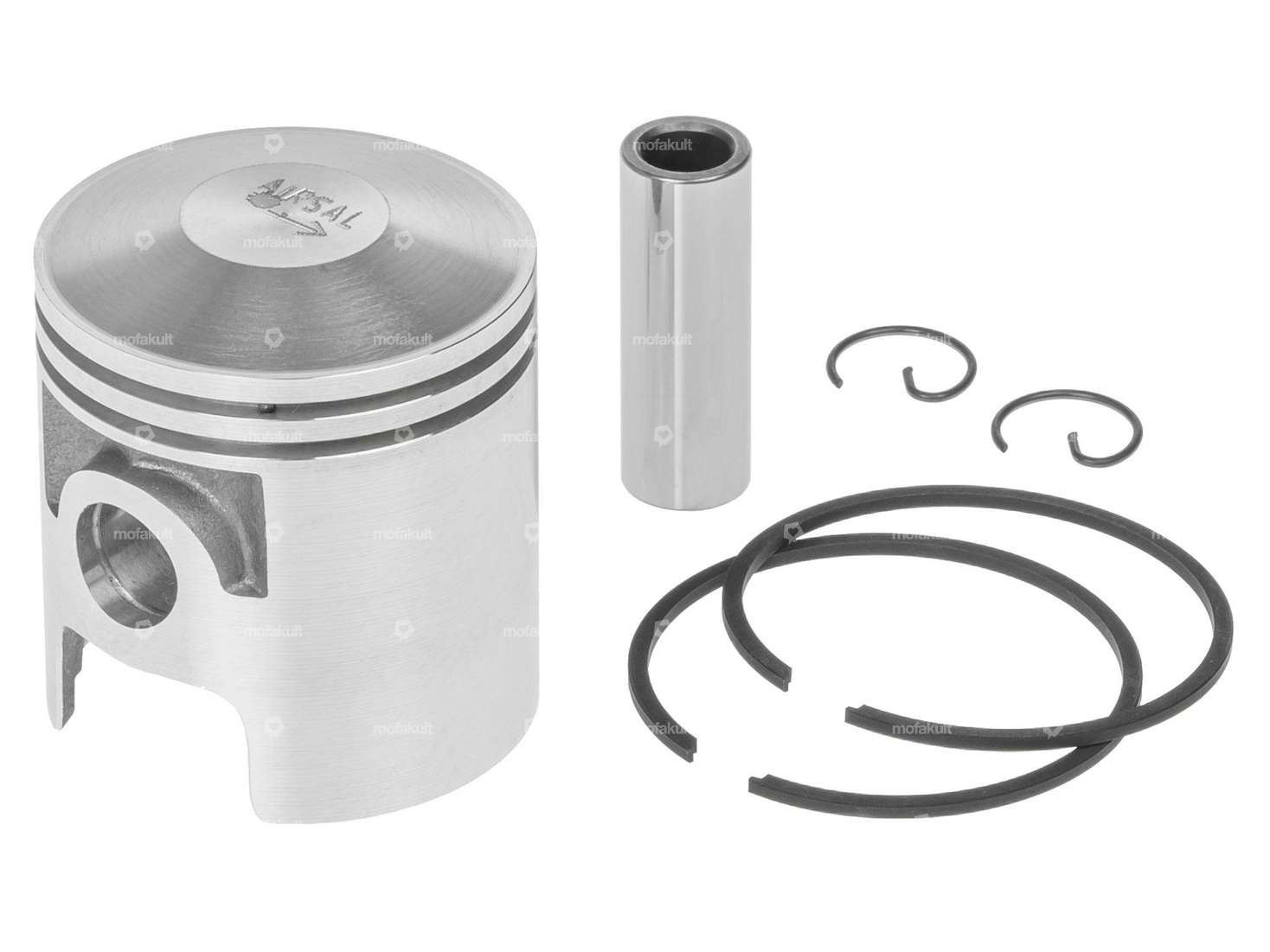

44 mm replacement piston with two 1.5 mm rectangular piston rings with internal locking (IS) for Tomos S25/2, A38B and A35 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Airsal.
Details
| Nominal diameter | 44 mm |
| Manufacturer | Airsal |
| Ø outside piston (A) | 43.95 mm |
| Compression height (C) | 21.1 mm |
| Curvature (D) | 3.7 mm |
| Total piston height (E) | 49.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 10 mm |
| Piston weight | 83 g |
Suitable for the following models
| Tomos |
