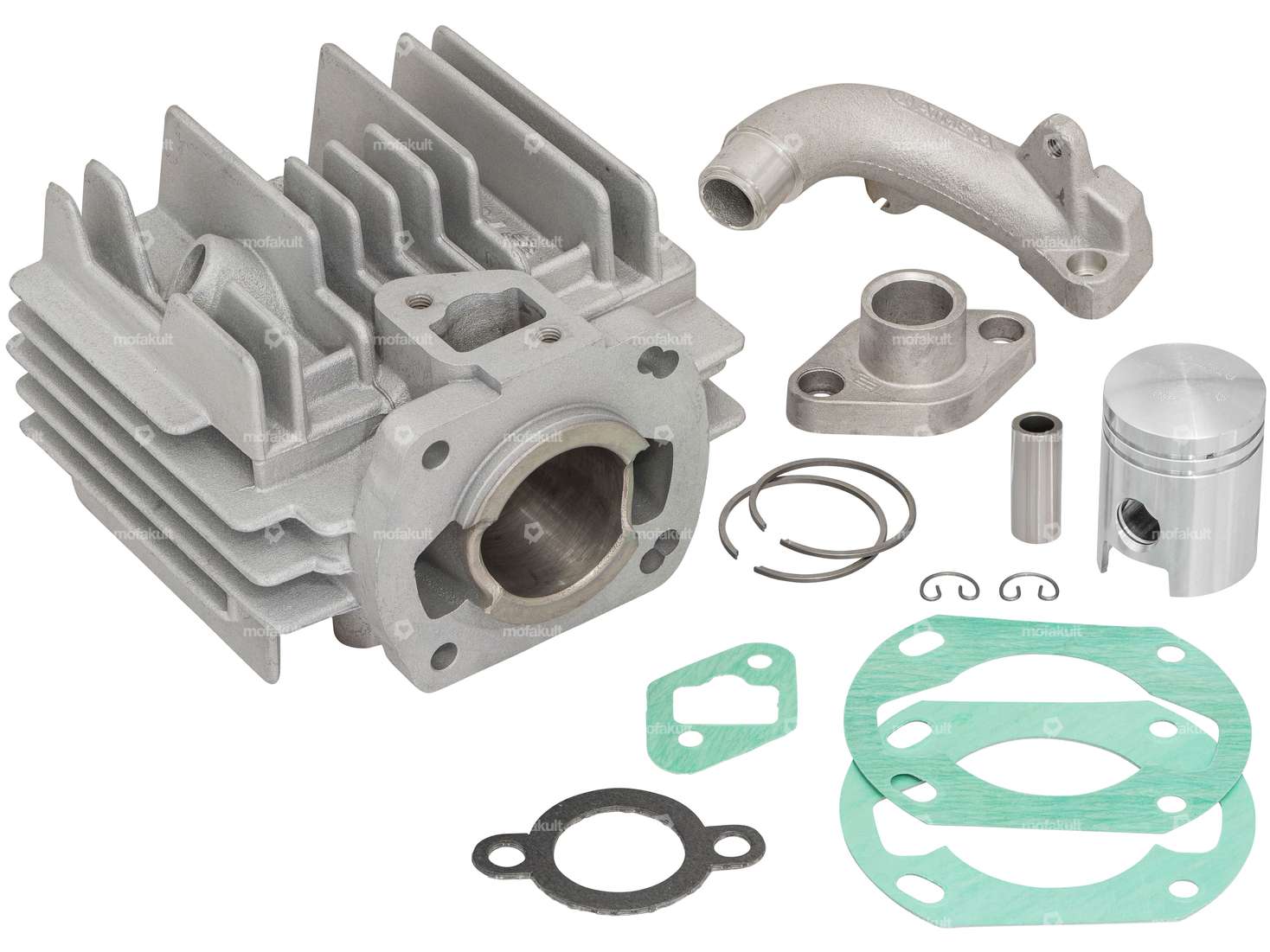

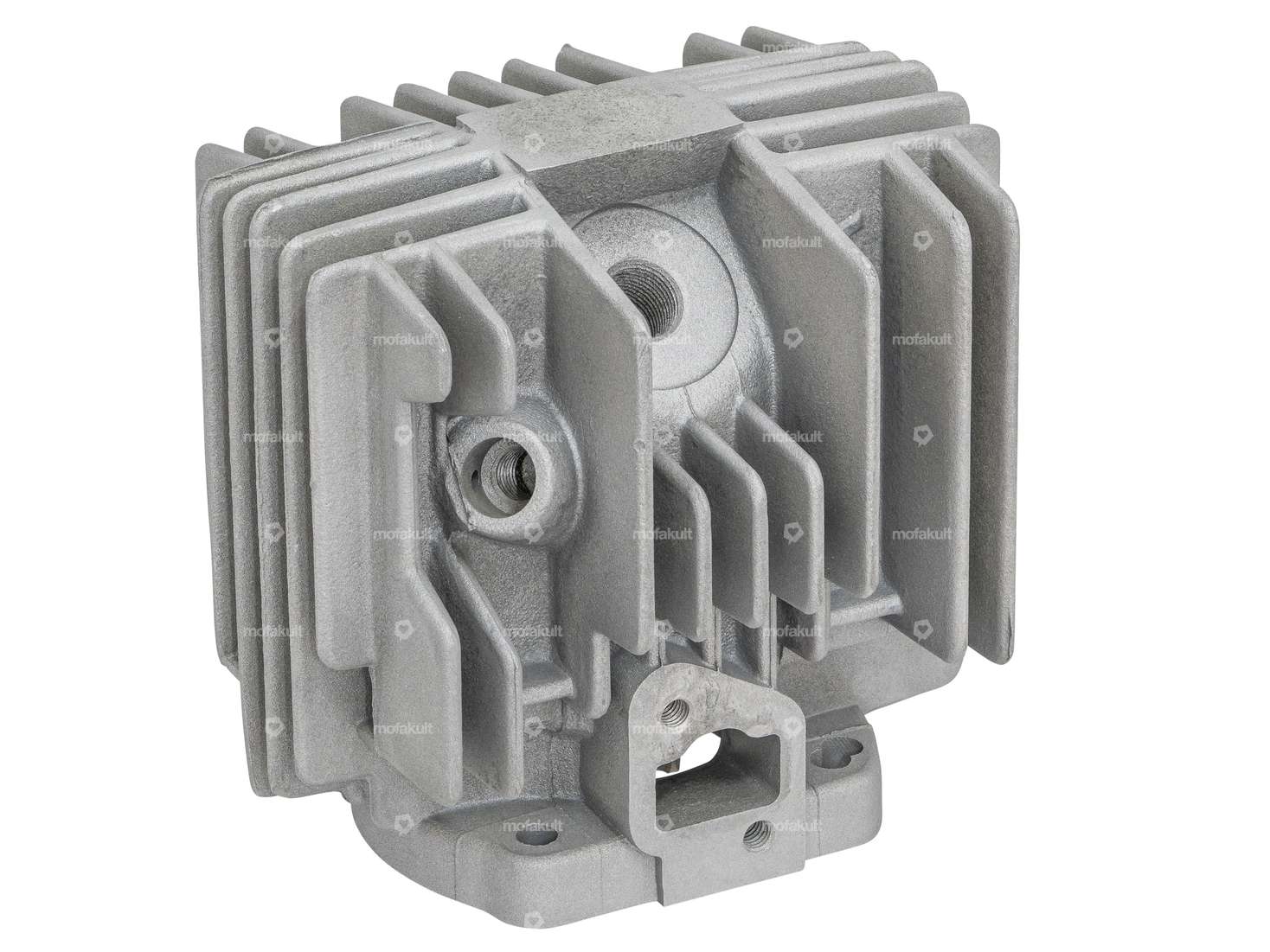

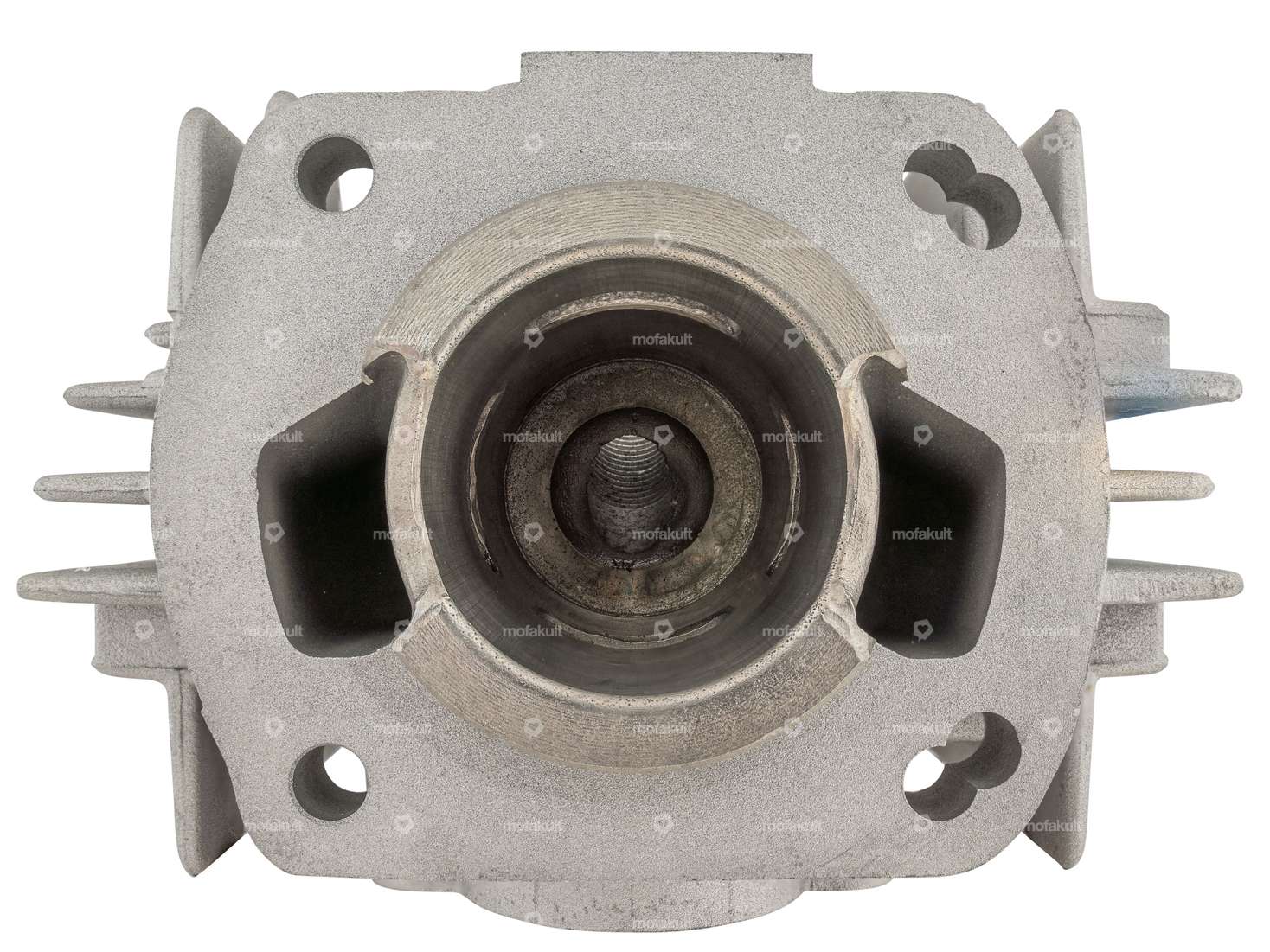

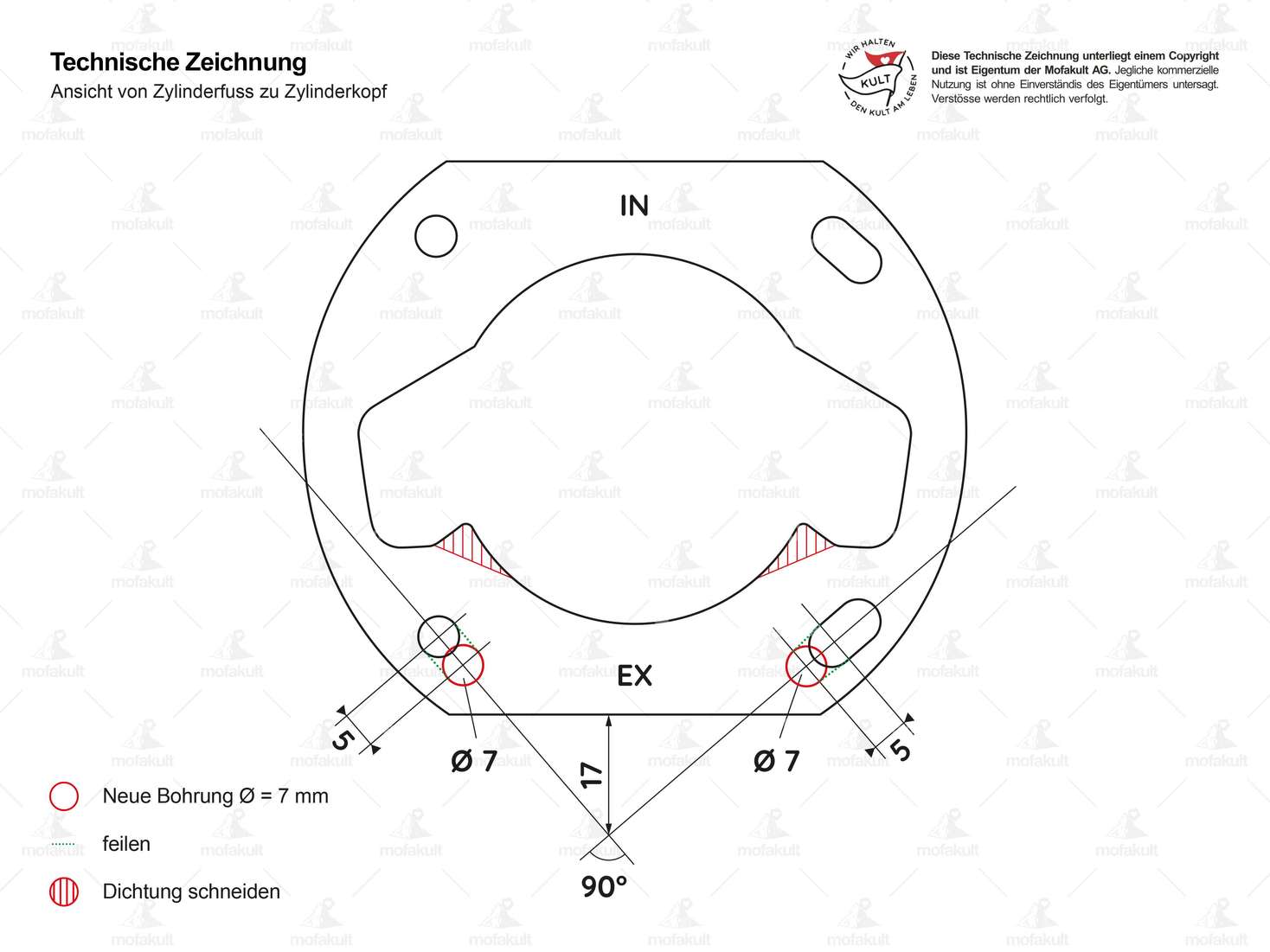

Racing cylinder of the Athena brand for Sachs 504 (with adaptations), 505 & 508 engines, which were installed on Hercules Prima M, 2, 3, 4, 5 and Optima mopeds / mopeds, among others.
Thanks to the large intake, overflow and exhaust, this tuning cylinder provides a considerable increase in performance.
Technical data cylinder:
- Ø internal intake manifold: 15 mm
- Connection diameter of intake manifold: 20 mm
- Ø inside exhaust flange: 20 mm
- Ø connection exhaust flange: 25.7 mm
- Distance stud bolt exhaust flange: 50 mm
- Ø Thread exhaust flange: M8
- Ø Cylinder neck: 51.6 mm
- Stroke: 44 mm
- Bore: 38.0 mm
- Thread for decompressor: M10 x 1.5 mm

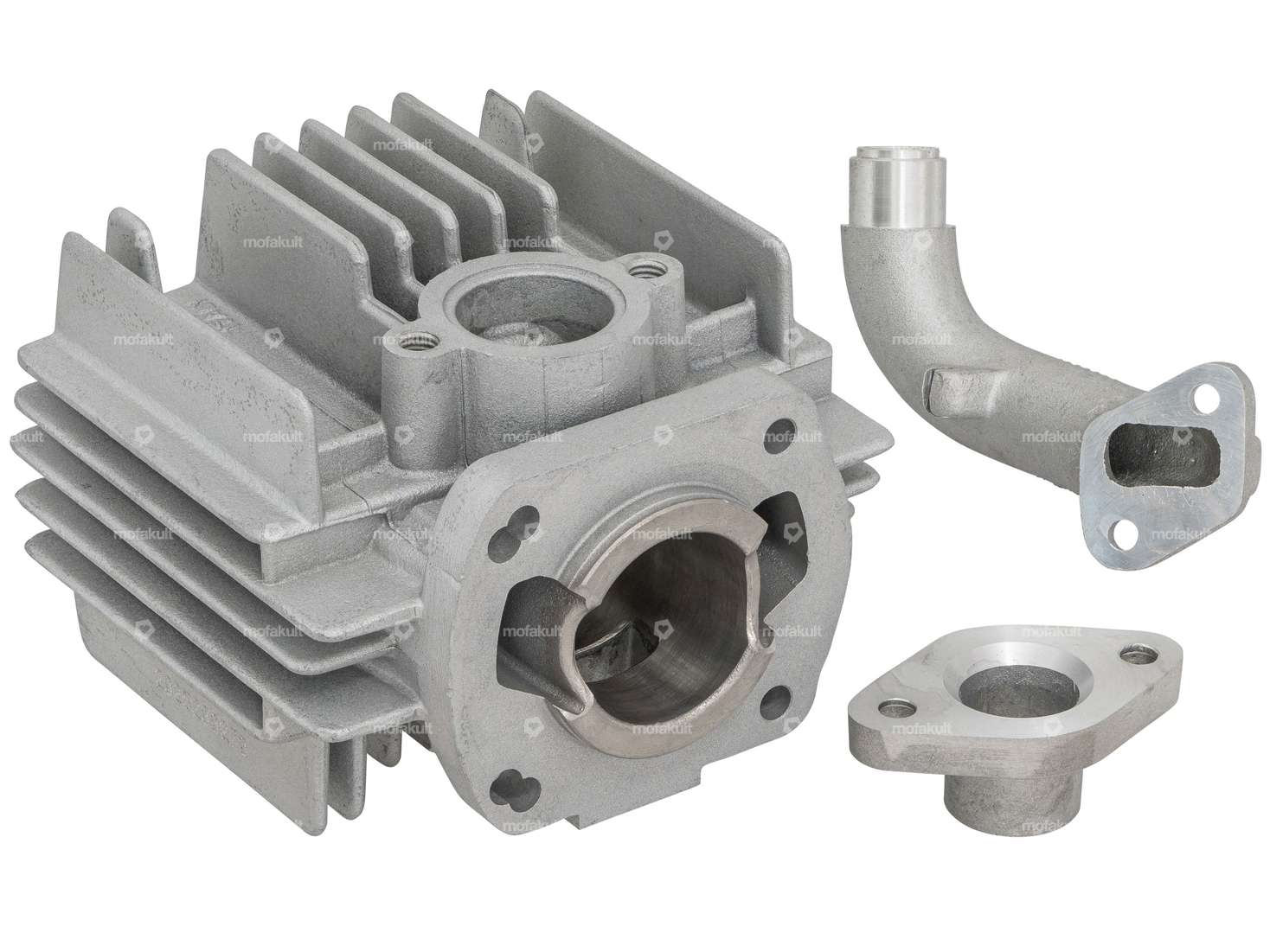

The intake manifold and exhaust flange are included in the scope of delivery
Details
| Nominal diameter | 38 mm |
| Manufacturer | Athena |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 44 mm |
| Ø cylinder neck | 51.7 mm |
| Ø outlet inside | 28 mm |
| Inlet window | 23.4 x 13 |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 31.5 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight, clamped |
| Hole spacing outlet | 50 mm |
| Thread outlet | M8x1.25 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 56 (61) x 56 |
| Decompressor | M10x1.5 |
| Camouflaged | No |
| Area of application | Tuning |
Suitable for the following models
| Sachs | 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 |
| Hercules | Great - 2, 3, 4, 5, Optima |
Accessories & related products
Athena 38 mm cylinder kit without mounting parts | Sachs (504), 505, 508
Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28.3 mm · Inlet window: 23.6 x 12.8 / 16.5 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/61 x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
