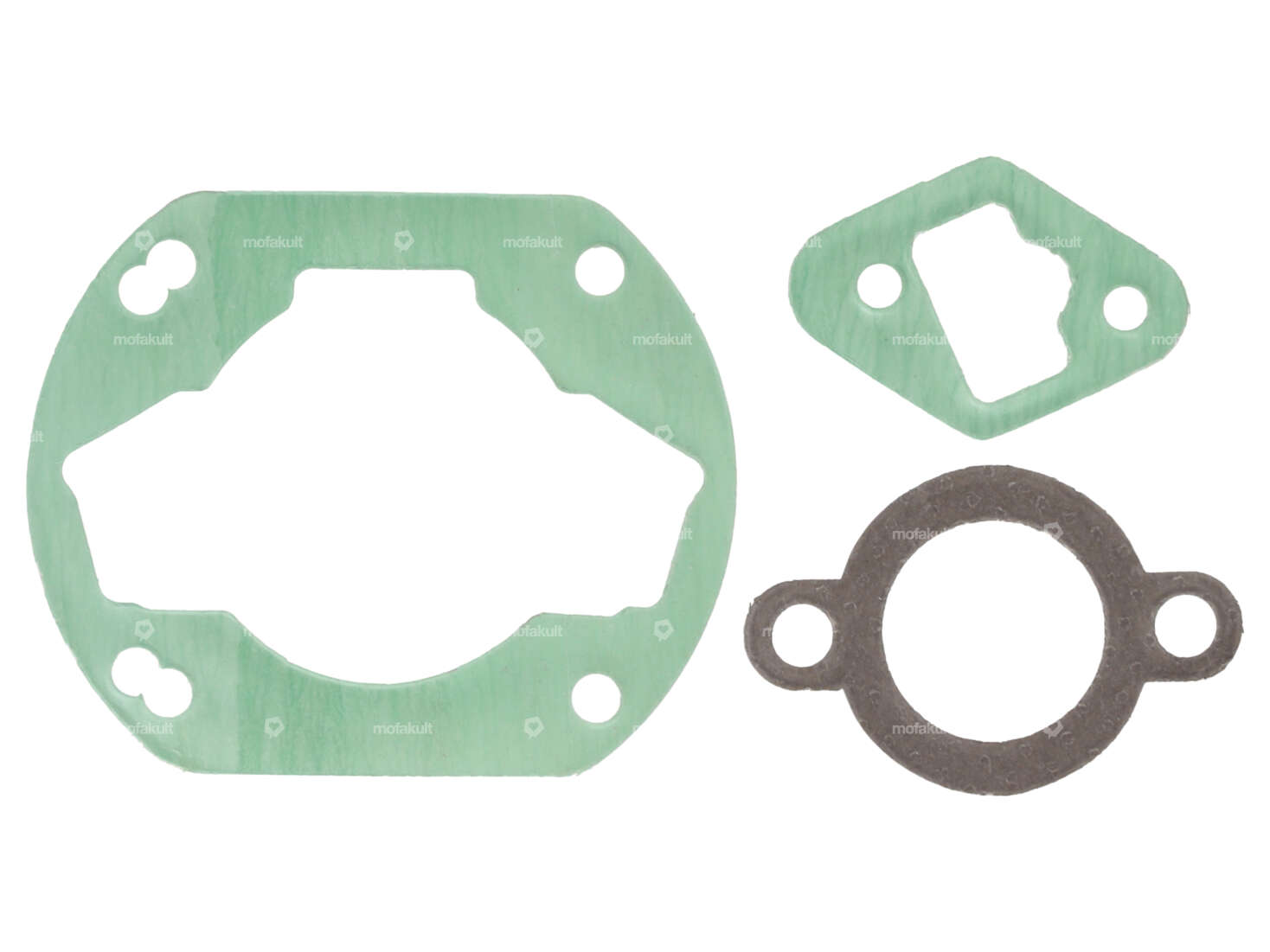

Three-piece set of gaskets for your Sachs moped / moped with 504 / 505 engine and Athena racing kit.
The gasket set consisting of cylinder base gasket and intake and exhaust gasket is suitable for the 48 mm racing kit from Athena.

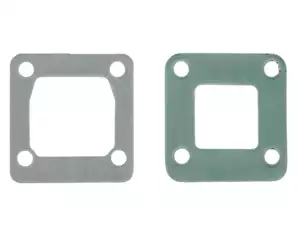

The matching diaphragm gaskets, the tuning kit and other add-on parts for this cylinder kit can be found in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Number of components | 3 pcs |
| Area of application | Tuning |
| Ø cylinder | 48 mm |
Suitable for the following models
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
Accessories & related products
Athena 48 mm cylinder kit without mounting parts | Sachs (504), 505, 508
Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.6 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 4 pcs · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 339.80
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 364.10
Athena piston 48 mm #B | Sachs 504 / 505
Manufacturer: Athena · Nominal diameter: 48 mm · Ø outside piston (A): 47.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 30.12 mm · Curvature (D): 1.94 mm · Total piston height (E): 59 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: B · Piston weight: 123 g
EUR 83.40

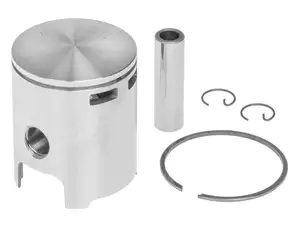

Athena piston 48 mm #A | Sachs 504 / 505
