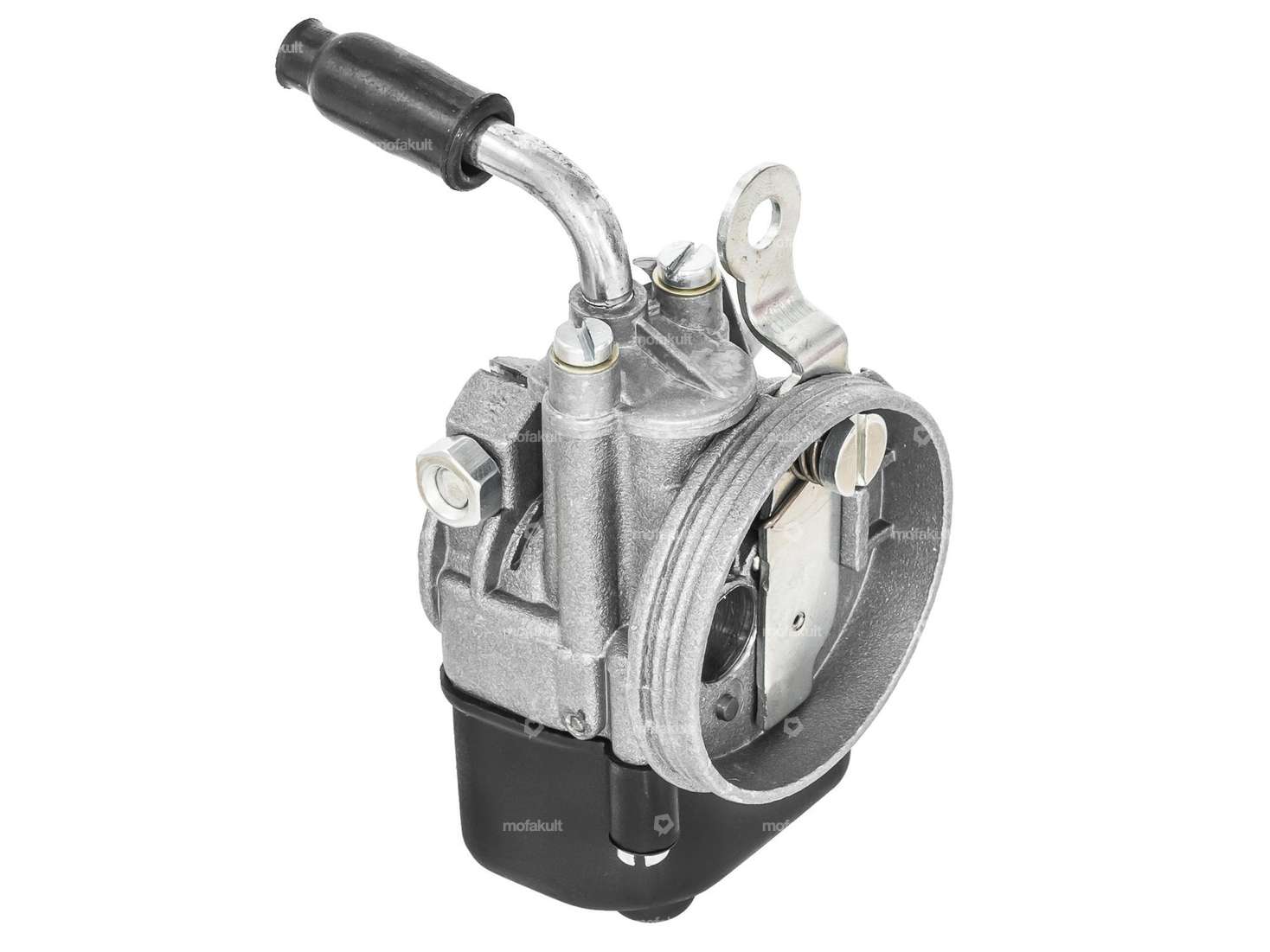

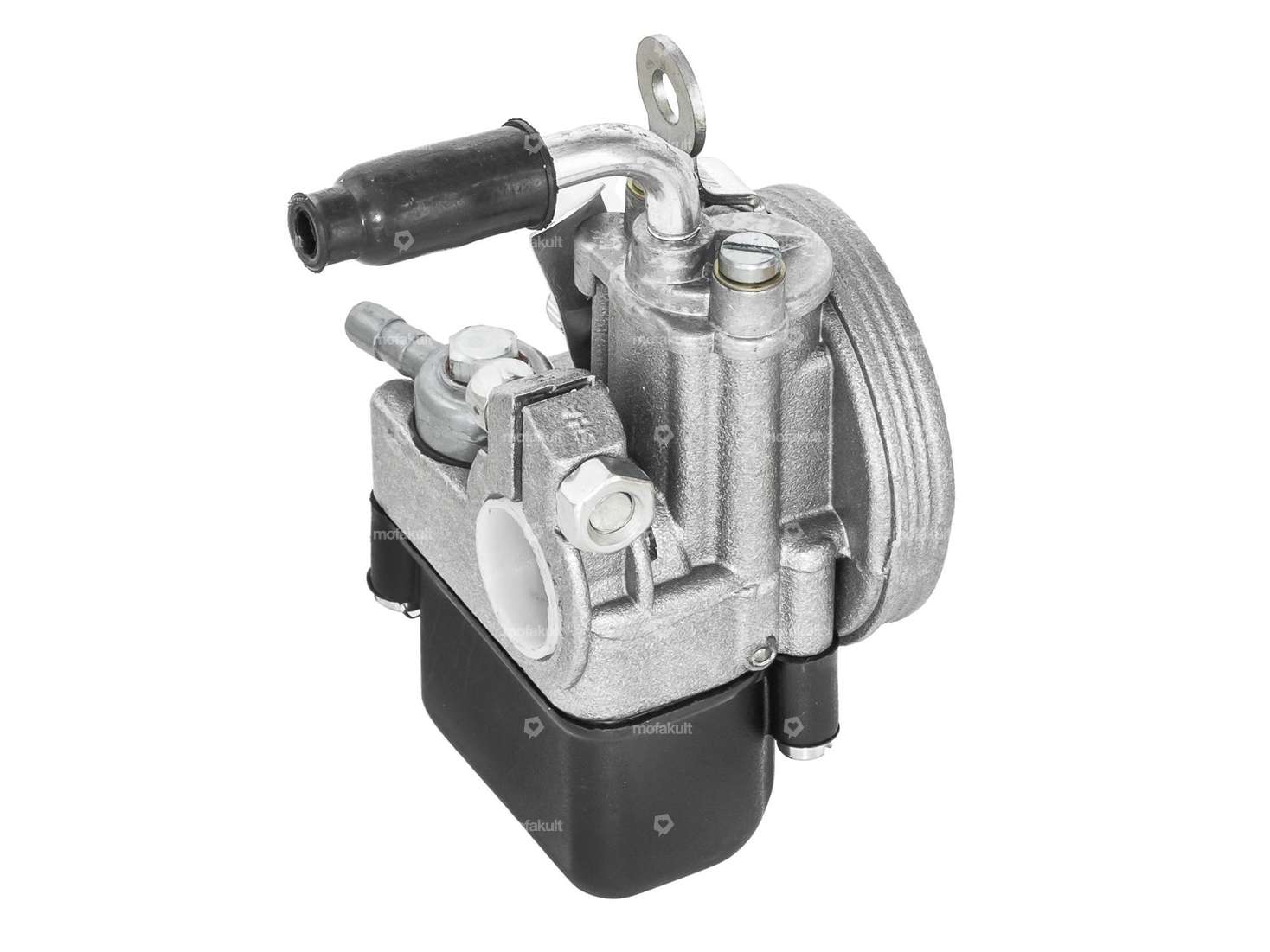

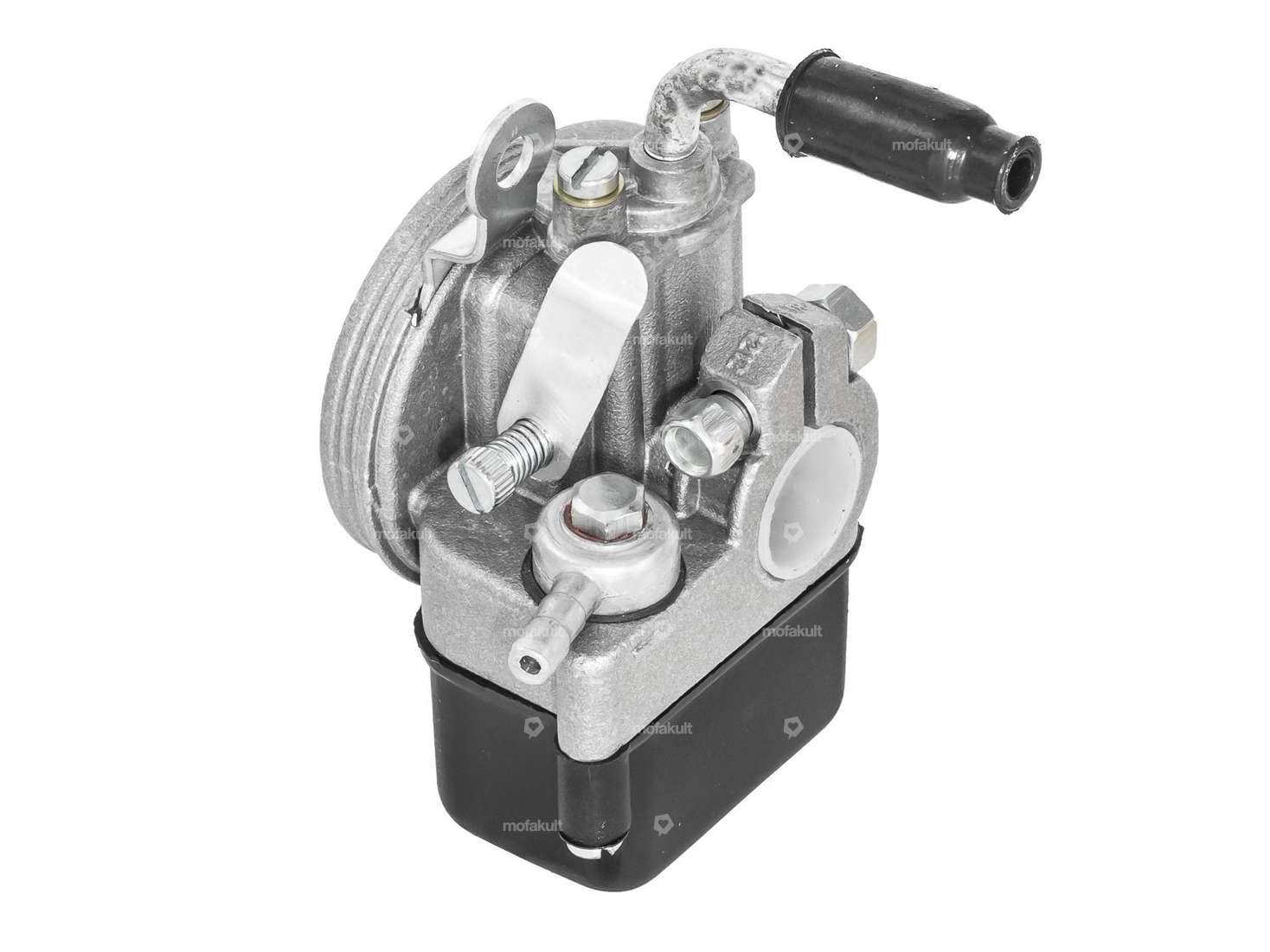

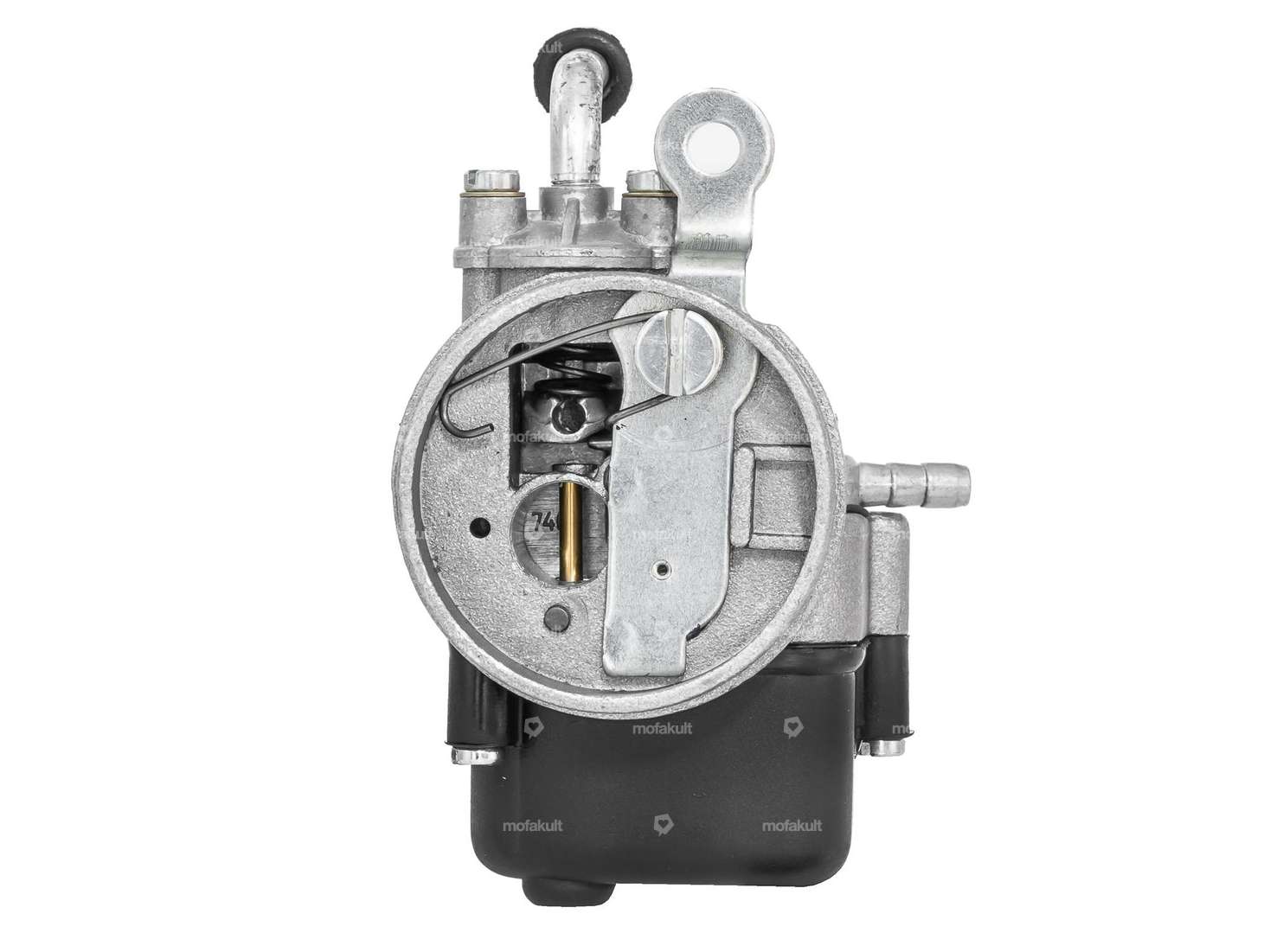

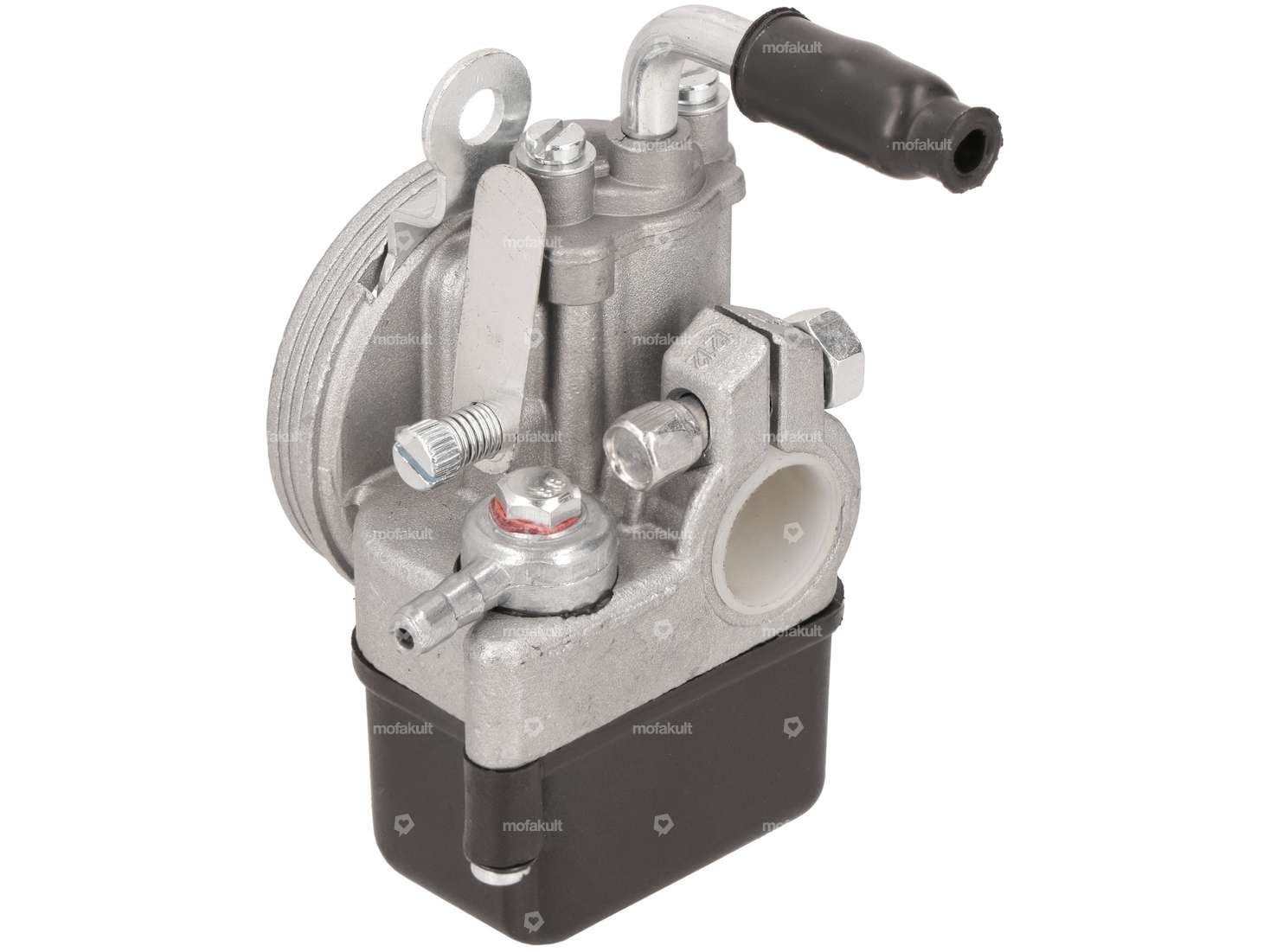

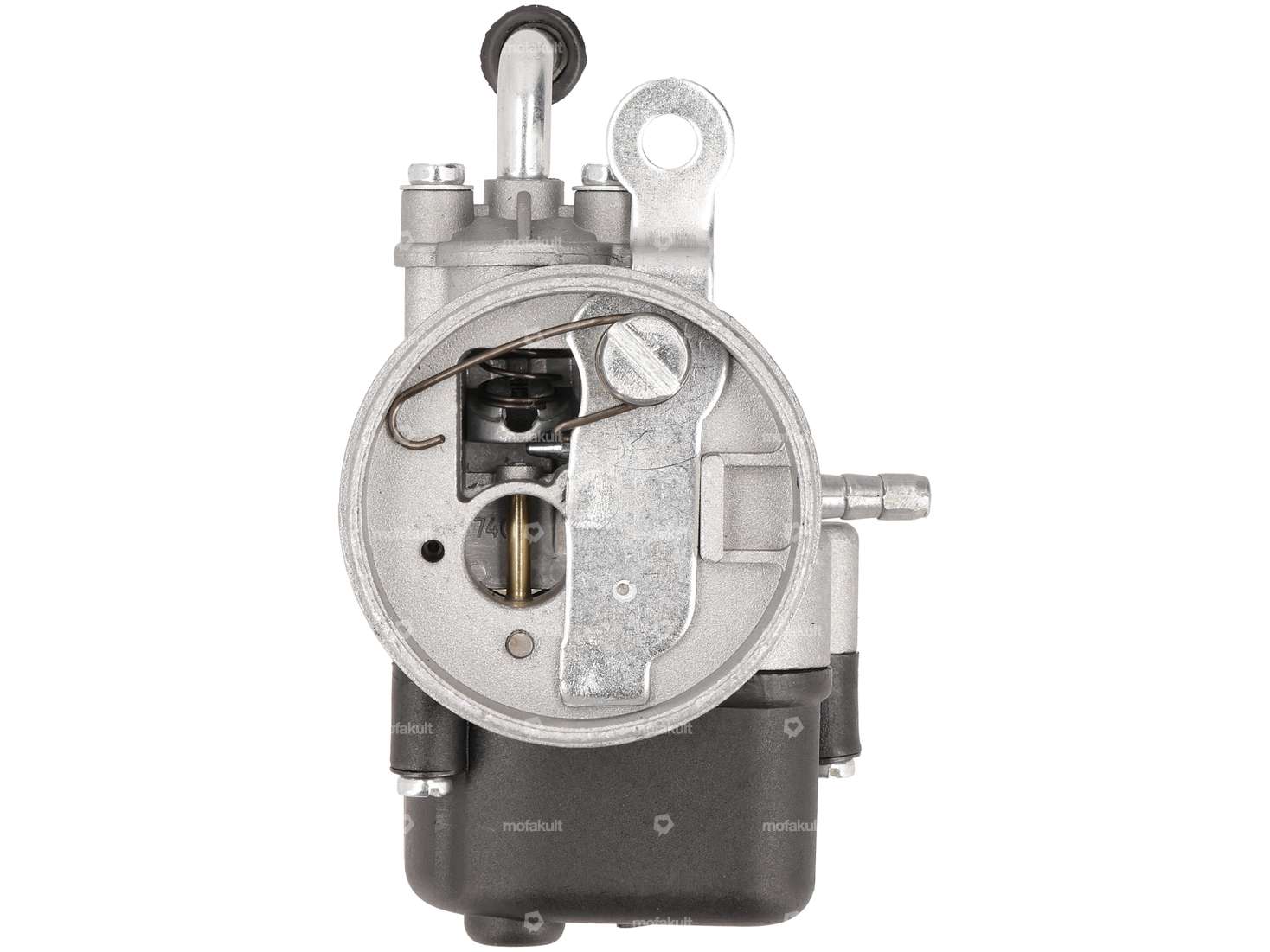

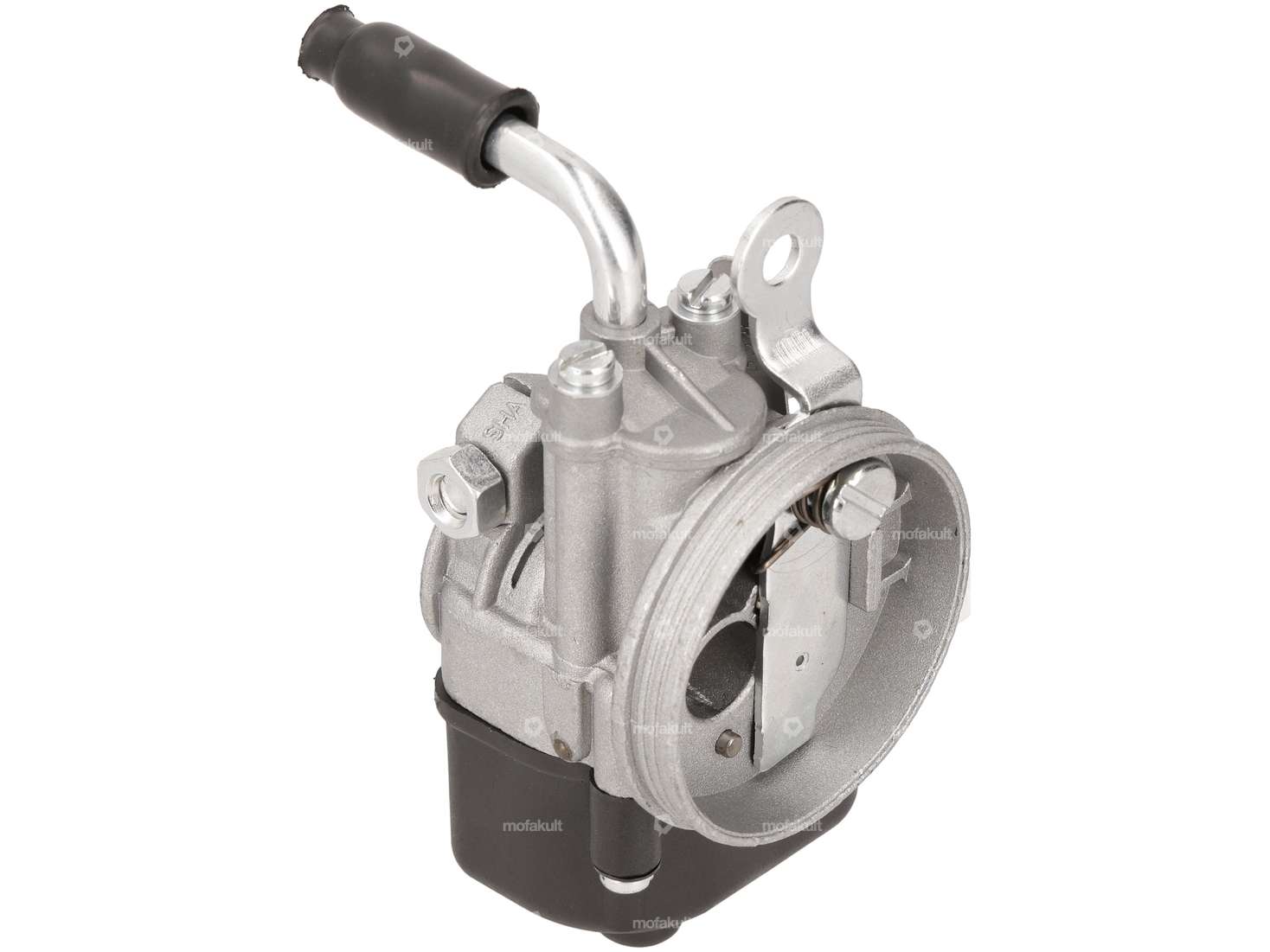

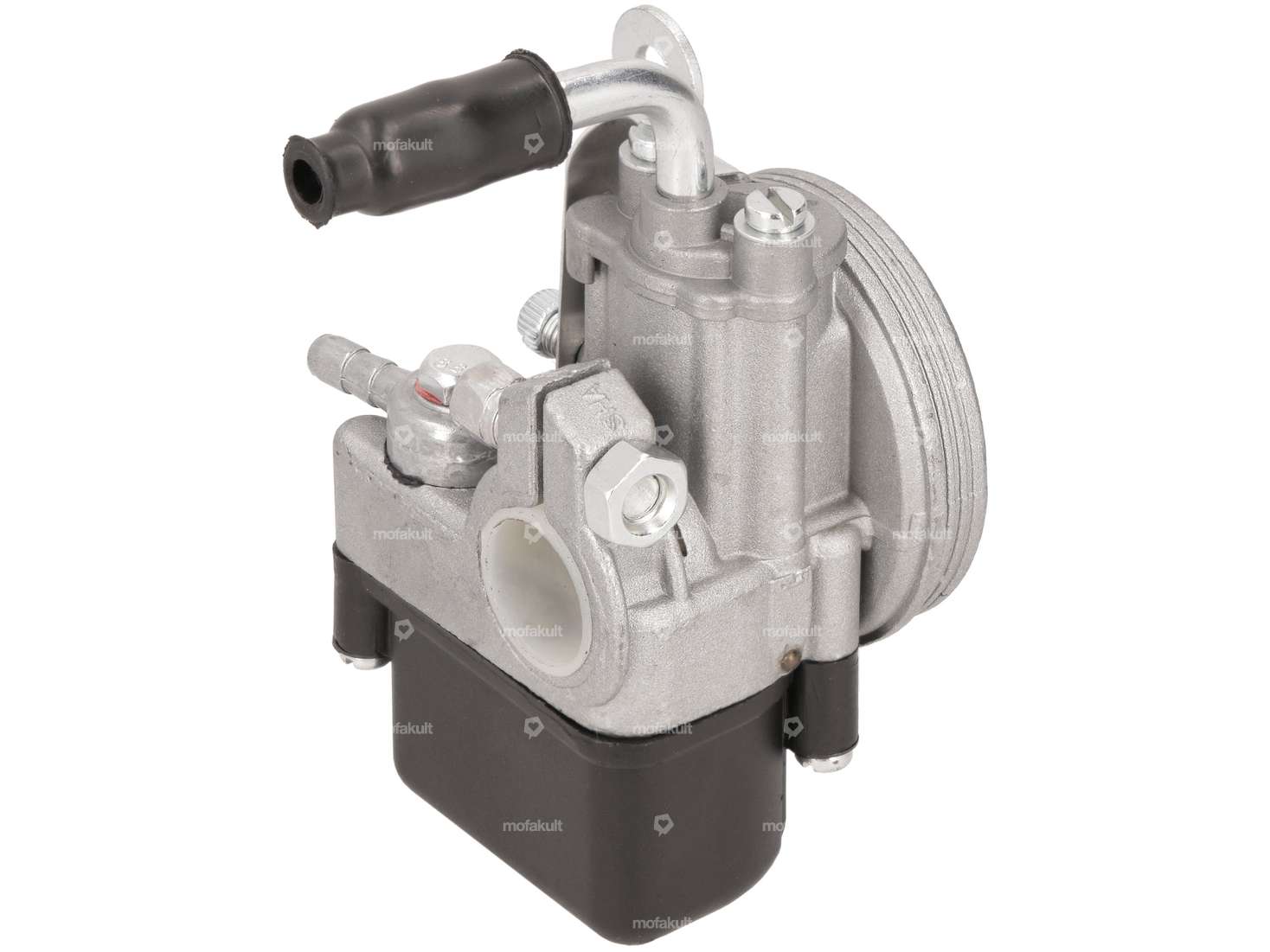

Favourable 12 / 12 replica carburettor for your Piaggio Ciao moped / moped.
The carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.5 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 87 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
Note: The finish of the aftermarket carburettors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
Details
| Manufacturer | Quenching |
| Component group Carburetor | Carburetor complete |
| Material | Aluminum |
| Carburetor type | SHA (Piaggio) |
| Color | black |
| Nominal diameter | 12 mm |
| Ø Internal connection | 16 mm |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.5 mm |
| Total length | 45 mm |
| Ø fuel hose connection | 5.5 mm, 4.8 mm |
| Mixed oil connection | No |
| Area of application | Tuning |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Camouflaged | No |
| Mounting type | Plug connection clamped |
| Width | 60 mm |
| Height | 104 mm |
Suitable for the following models
| Piaggio | Ciao - PX, C24 |
Accessories & related products
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Camouflaged: No · Color: black · Material: Plastic · Filter type: Foam · Total length: 31.2 mm · Width: 95 mm · Height: 88.7 mm · Ø Internal connection: 51 mm · Ø outside: 53.2 mm · Mounting type: Plug connection clamped · Area of application: Tuning
EUR 23.90

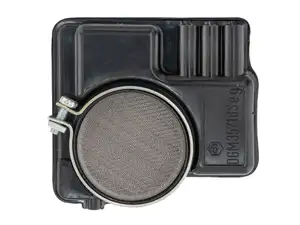

Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Color: black · Material: Plastic · Filter type: Grille · Total length: 26.5 mm · Width: 94 mm · Height: 89 mm · Ø Internal connection: 49.7 mm · Ø outside: 51 mm · Mounting type: Plug connection clamped · Area of application: Original · Area of application: Tuning
EUR 19.10

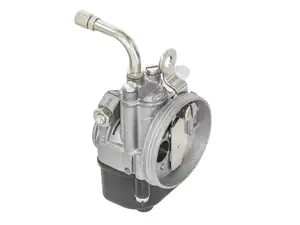

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 48 · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 110 mm · Area of application: Tuning
EUR 78.10
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120
EUR 4.20
swiing nozzle set M5 (32 - 50) Dell'Orto SHA, PHBG
Manufacturer: swiing · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50
EUR 25.10

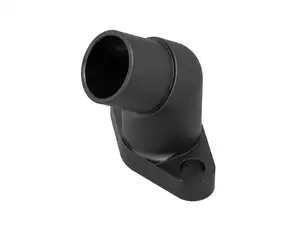

swiing® ingenious 16 mm intake manifold | Cilo 502
Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Surface: anodized · Color: black-matt · Ø inside: 16 mm · Hole spacing inlet: 32 mm · Ø External connection: 19 mm · Number of fixing points: 2 pcs · Mounting type: Screws
EUR 58.70

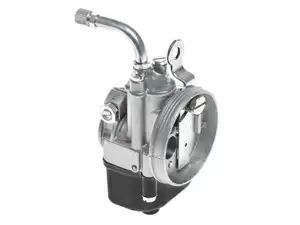

Dell'Orto 12/12 SHA carburetor | Piaggio Ciao PX, C24
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 51 · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 109 mm · Area of application: Tuning
EUR 78.10
swiing nozzle set M5 (50 - 60) Dell'Orto SHA, PHBG
Manufacturer: swiing · Material: Brass · Component group Carburetor: Spraying · Quantity: 11 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60
EUR 27.50
Moped fans like you also bought:
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm
EUR 11.90
swiing nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm · Drive: Slot
EUR 25.10
GPO chain tensioner | Piaggio Ciao
Manufacturer: GPO · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Number of teeth: 8 pcs · Ø outside sprocket: 33 mm · Color: black · Color: silver · Total length: 64 mm · Width: 45 mm · Thread type: M8x1.25 (standard thread) · Number of fixing points: 1 pcs
EUR 11.30
Not so nice
Clutch 56 mm (reproduction) | Piaggio, Ciao, SI, Bravo, Boxer
Manufacturer: Quenching · Ø Outer pulley: 56 mm · Material: Steel · Material addition: Composite materials · Surface: coated · Number of jaws: 2 pcs · Number of jaws: 3 pcs · Number of springs: 2 pcs · Number of springs: 3 pcs · Ø inside: 8.45 mm · Ø inside: 12 mm · Ø outside: 90 mm · Area of application: Standard
EUR 48.00
Polini air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Plastic · Color: black · Filter type: Foam · Total length: 29 mm · Height: 94.7 mm · Ø Internal connection: 50.6 mm · Ø outside: 53 mm · Width: 98 mm · Mounting type: Plug connection clamped · Camouflaged: No · Area of application: Tuning
EUR 17.90
Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Color: black · Material: Plastic · Filter type: Grille · Total length: 26.5 mm · Width: 94 mm · Height: 89 mm · Ø Internal connection: 49.7 mm · Ø outside: 51 mm · Mounting type: Plug connection clamped · Area of application: Original · Area of application: Tuning
EUR 19.10
Fuel tap horizontal M12x1 (with union nut) bottom outgoing | Piaggio Ciao
Possible lever positions: open / closed / reserve · Material lever: Aluminum · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut · Alternative version of the Piaggio OEM number: 103089 · Piaggio OEM number: 189525 · Piaggio OEM number: 257073
EUR 11.90

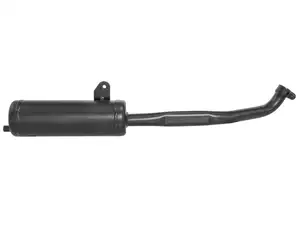

TECNO City Power exhaust Ø 25 mm | Piaggio Ciao, Bravo
