Not so nice

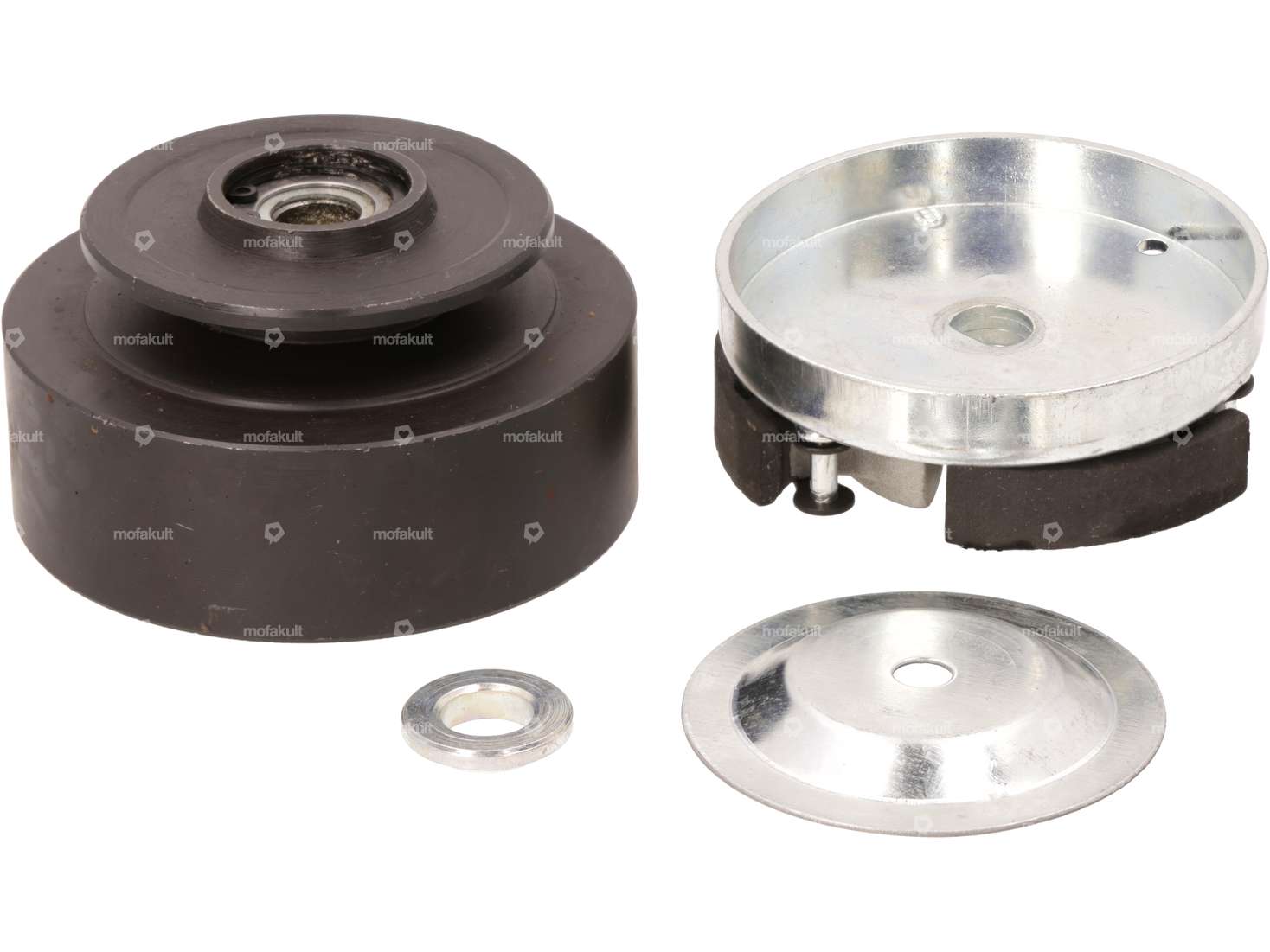

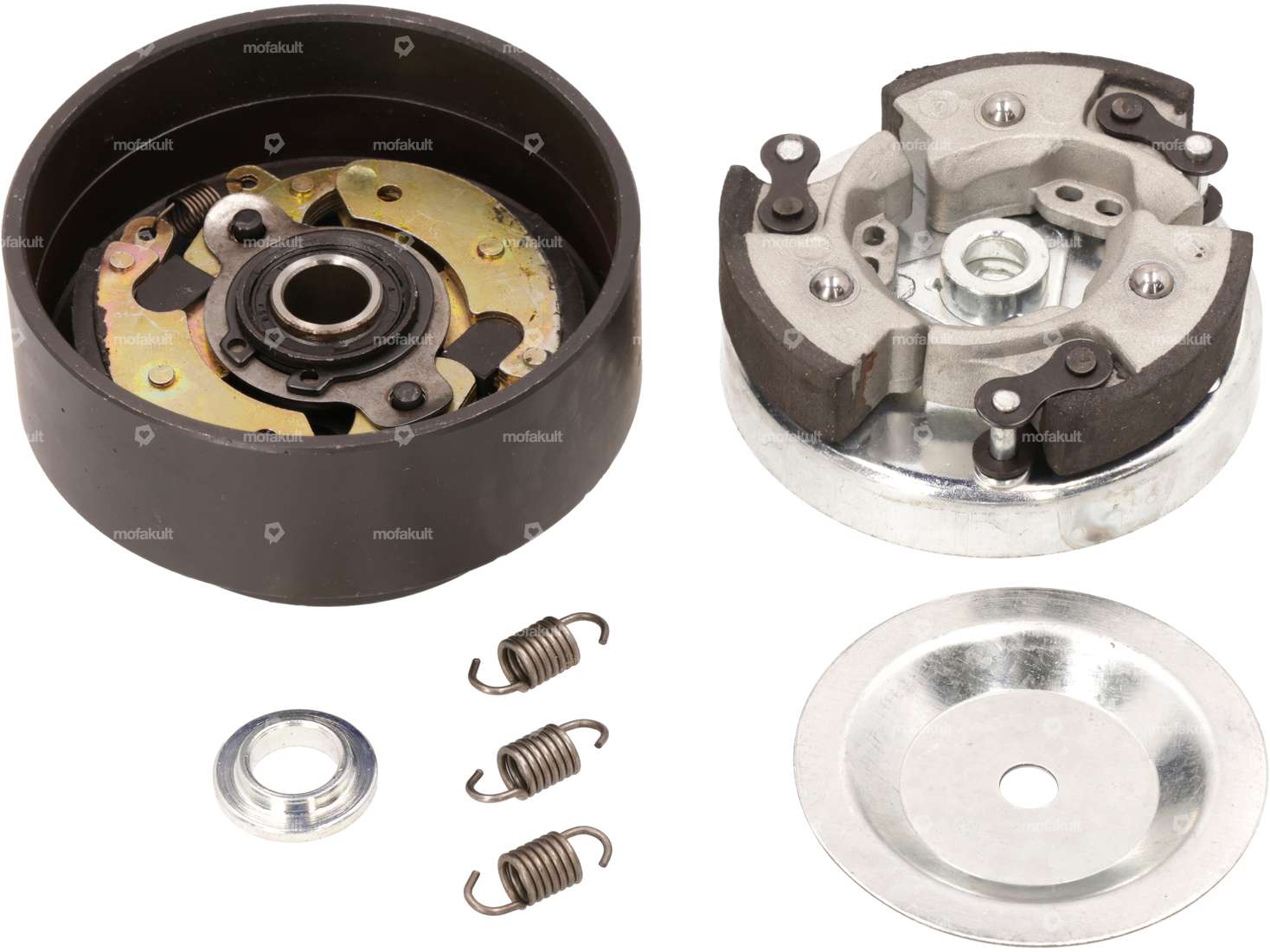

Favorable reproduction clutch with 66 mm diameter (V-belt side) for your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
On the following models, the large clutch bell was fitted ex works in Switzerland and can therefore be regarded as an original replacement:
Ciao C9N1, type certificate 7013
Ciao C7N1, type certificate 7038
Ciao C7E1, type certificate 7148
Ciao C7ER1, type certificate 7221
For all other model series, with 56 mm diameter, the bell can be regarded as a tuning version.
Fitting a larger bell increases the top speed, but reduces the pull-in.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The clutch bell bushing has an increased dimensional tolerance, which is why imbalance can occur.
You can find high-quality alternatives in the accessories section.
Original Piaggio spare part number: 104479, 114849
Alternative to the original Piaggio spare part number: 1651505, 4803595
Good-quality reproduction product from the Asian market.
Details
| Manufacturer | Quenching |
| Material | Steel |
| Ø outside | 66 mm |
| Number of jaws | 3 pcs, 2 pcs |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
