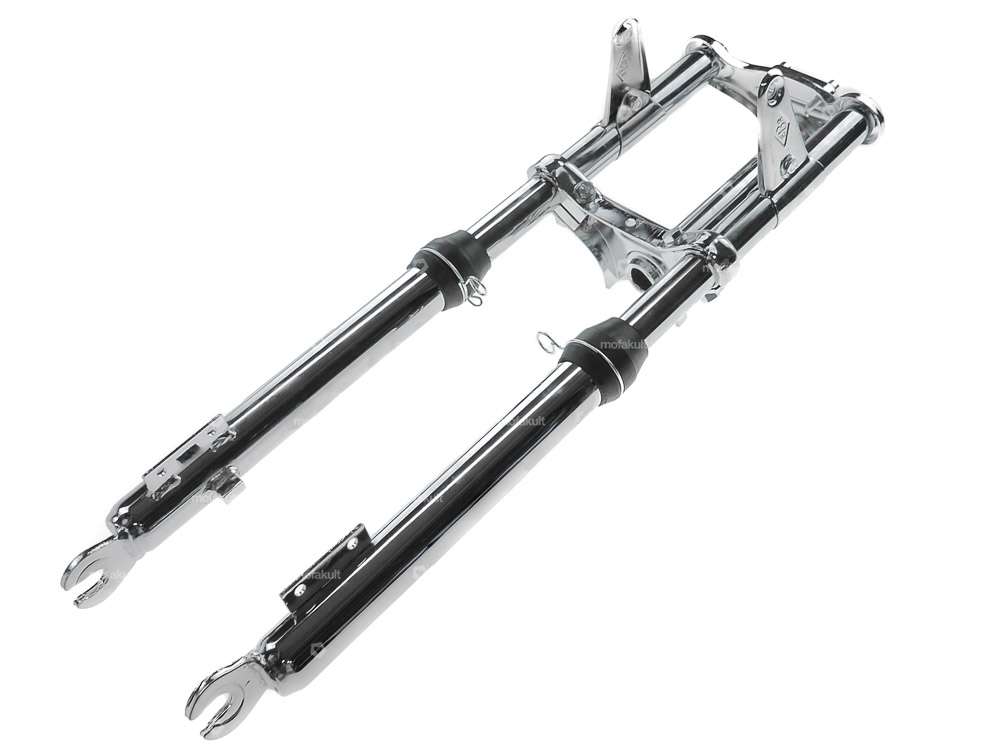

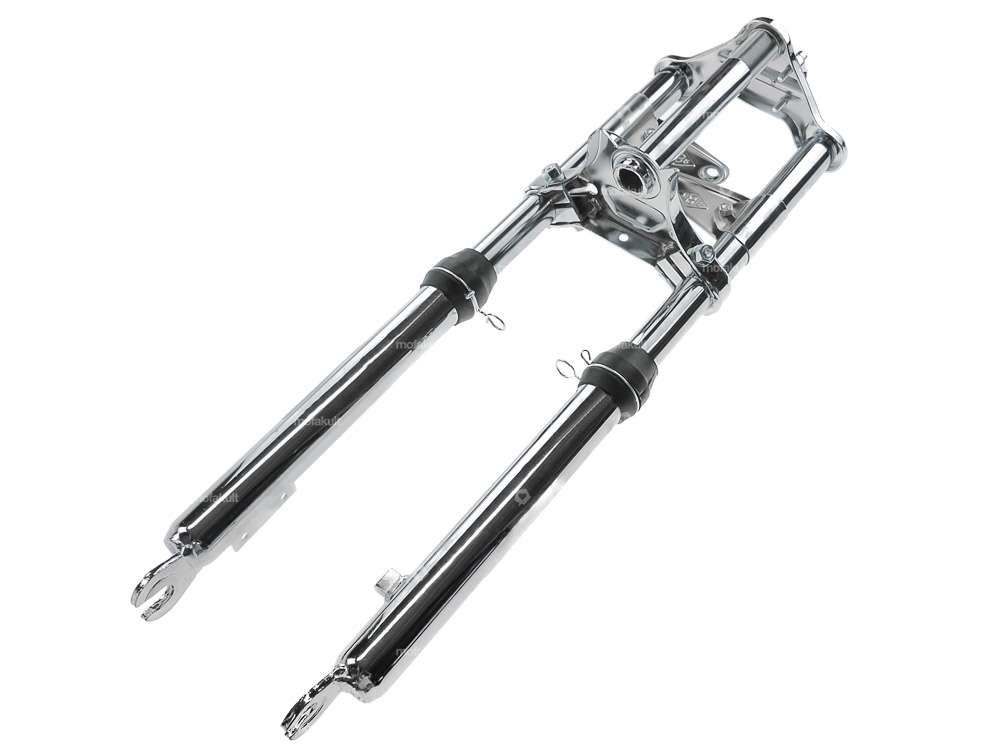

Chromed EBR fork with reinforced bars.
For various mopeds. E.g. Zündapp Belmondo, Sachs 50/2 etc.

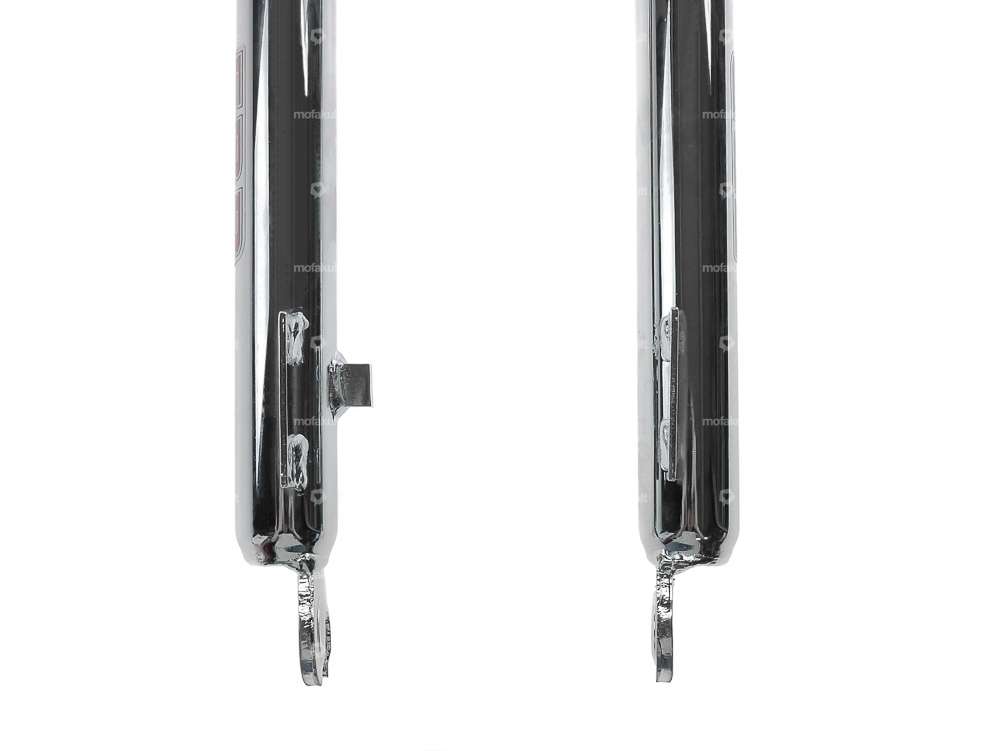

Block to attach the brake anchor plate is located on the right side.

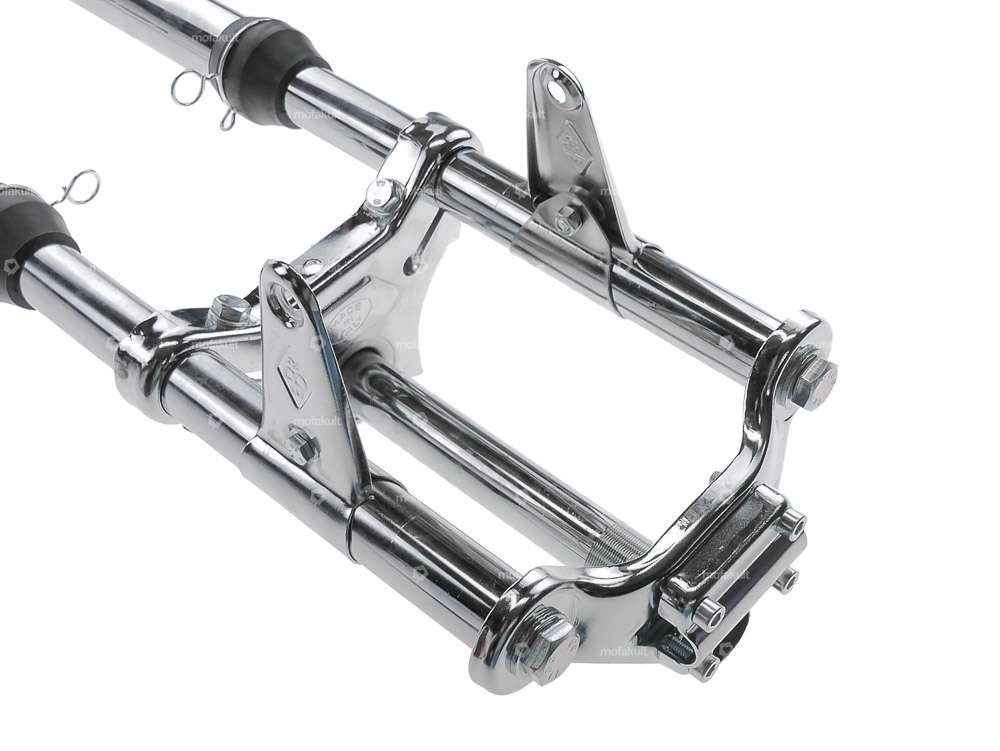

With clamp for attaching the handlebars to the fork plate.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 19.5 cm
Total length: 60 cm
Head tube thread: M26x1
Find matching headset bearings below in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
| Thread length | 58 mm |
| Total length | 610 mm |
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Adjustable | No |
| Spar end distance (center-center) | 140 mm |
| Thread type | MF26x1 (fine pitch thread) |
| Color | Chrome |
| Ø head tube inside | 22 mm |
| Ø outer head tube | 26.1 mm |
| Ø spars | 28 mm |
| Head tube length | 192 mm |
| Fork bridge - center wheel axle | 385 mm |
| Distance brake cam to wheel axle center-center | 82 mm |
Suitable for the following models
| Sachs | |
| Zündapp Belmondo |
