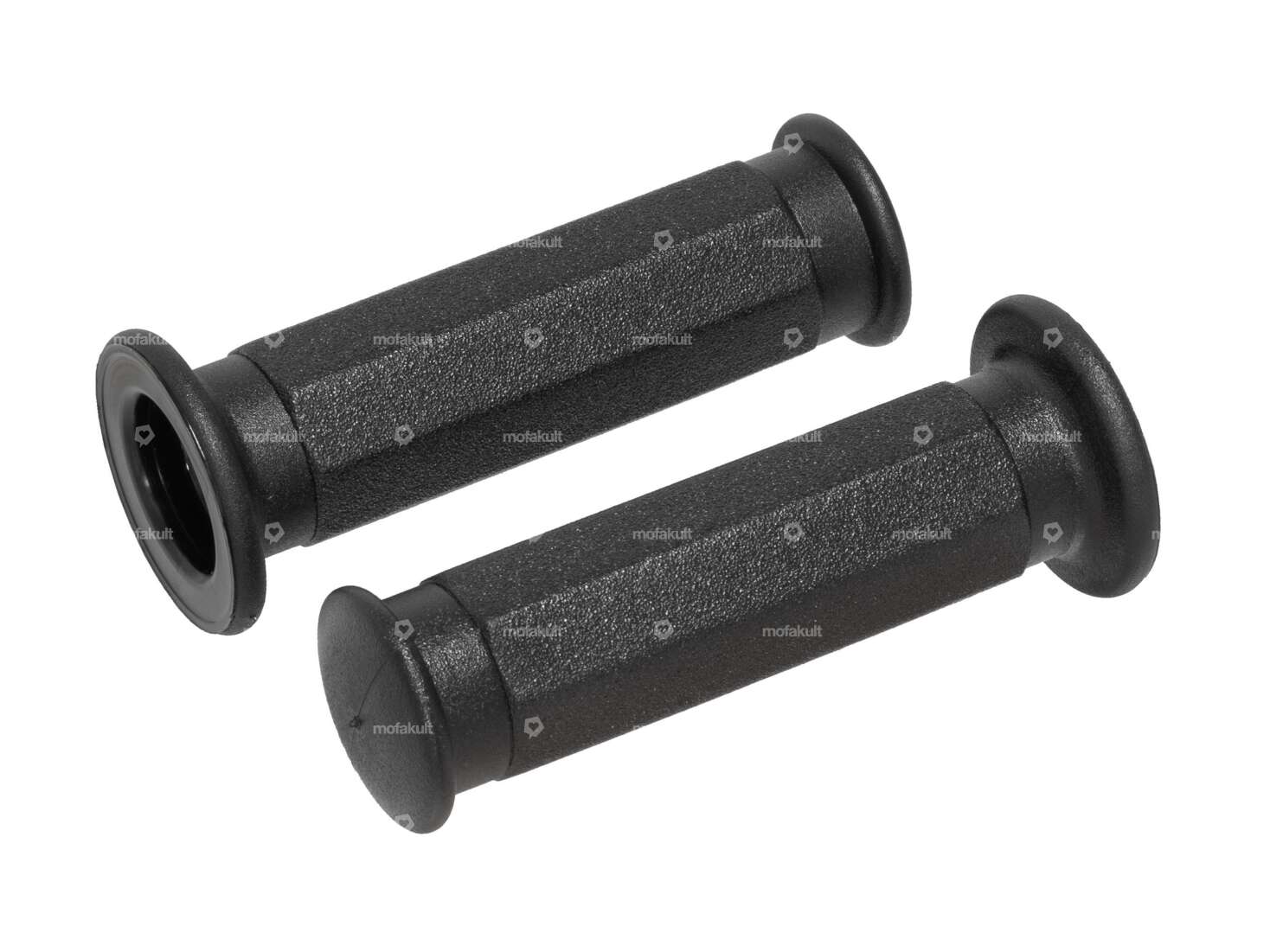

Handles polygon Piaggio original | Piaggio Ciao PX, SI, Bravo

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Reserve level: 70 mm

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 "

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Color: black · Surface: ribbed · Drive: Outer edge · Total length: 118 mm · Height: 29 mm · Width across flats SW: 15 mm · Width: 51 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes

GPO control bearing set | Piaggio Ciao

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Color: silver · Ø outside: 41.4 mm · Ø outside: 42 mm · Surface: galvanized (blue) · Ø mounting frame: 30.05 mm · Height: 10.5 mm · Height: 17 mm · Ø inside: 27 mm · Thread type: FG25.4 (1" 24G) · Ø ball [inch] / [mm]: 5/32" (4.00 mm)

Lockable fuel filler cap | Piaggio Ciao

Material: Plastic · Color: black · Fuel filler cap: Plug 33 mm · Lockable: Yes · Vented: Yes · Height: 105 mm · Ø External head: 54 mm

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Material: Steel · Color: black · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears

CIF screw set side protection | Piaggio Ciao

Manufacturer: CIF · Number of components: 12 pcs · Material: Spring steel · Material: Steel · Color: silver · Surface: galvanized (blue) · Surface: raw · Drive: Slot · Screw head: Lens head · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) bottom outgoing | Piaggio Ciao

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Mounting type: Union nut · Reserve level: 70 mm · Alternative version of the Piaggio OEM number: 103089 · Piaggio OEM number: 189525 · Piaggio OEM number: 257073

Fuse plate emblem original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Total length: 13 mm · Width: 8 mm · Clamping range: 3 - 5 mm · Piaggio OEM number: 008108
