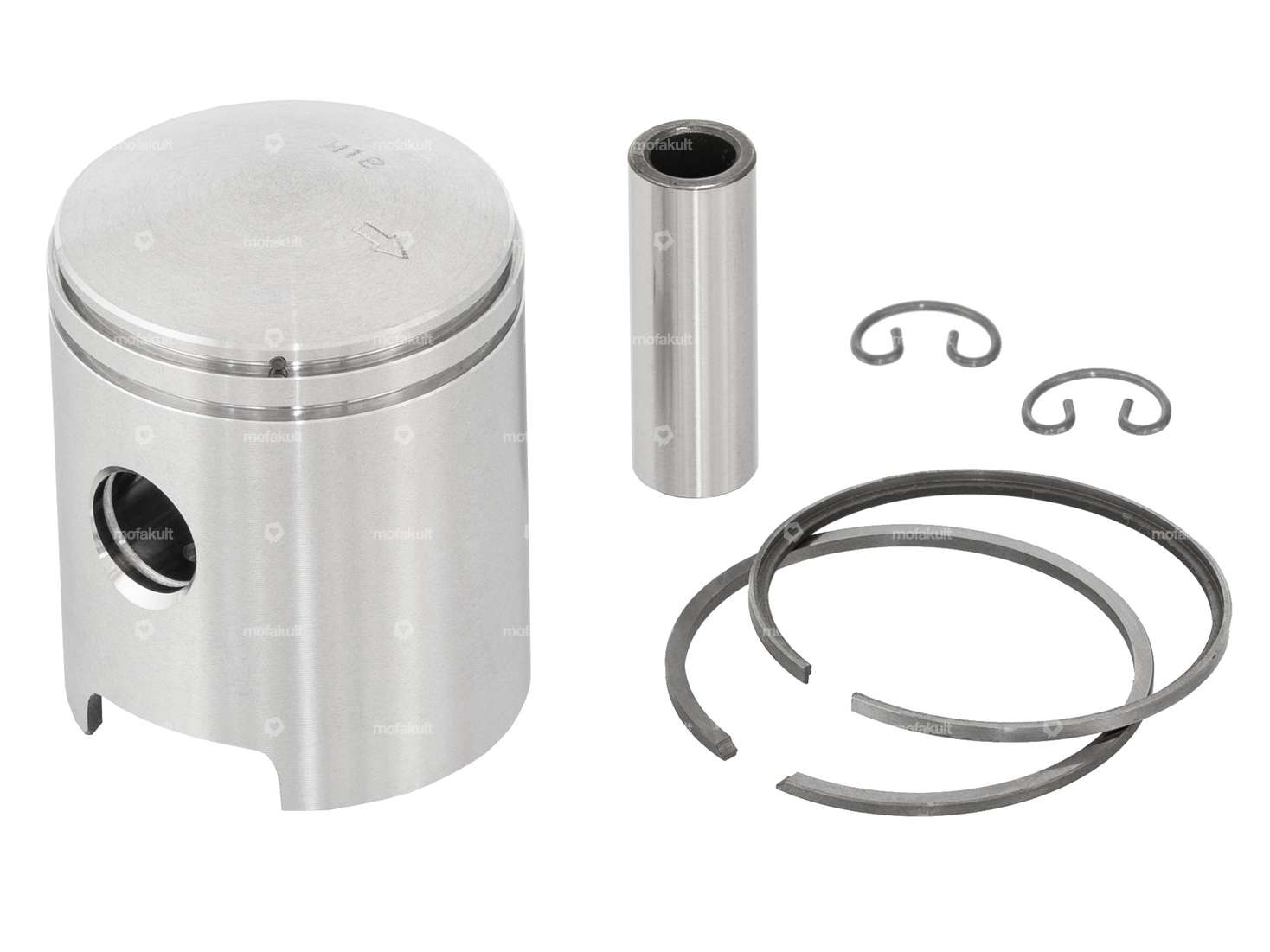

40.50 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for blown cylinders of Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 40.5 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 40.44 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 50 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Flank safety device (FS), Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Piston weight | 93 g |
Suitable for the following models
| Puch | Z50 (X30 Velux) |
