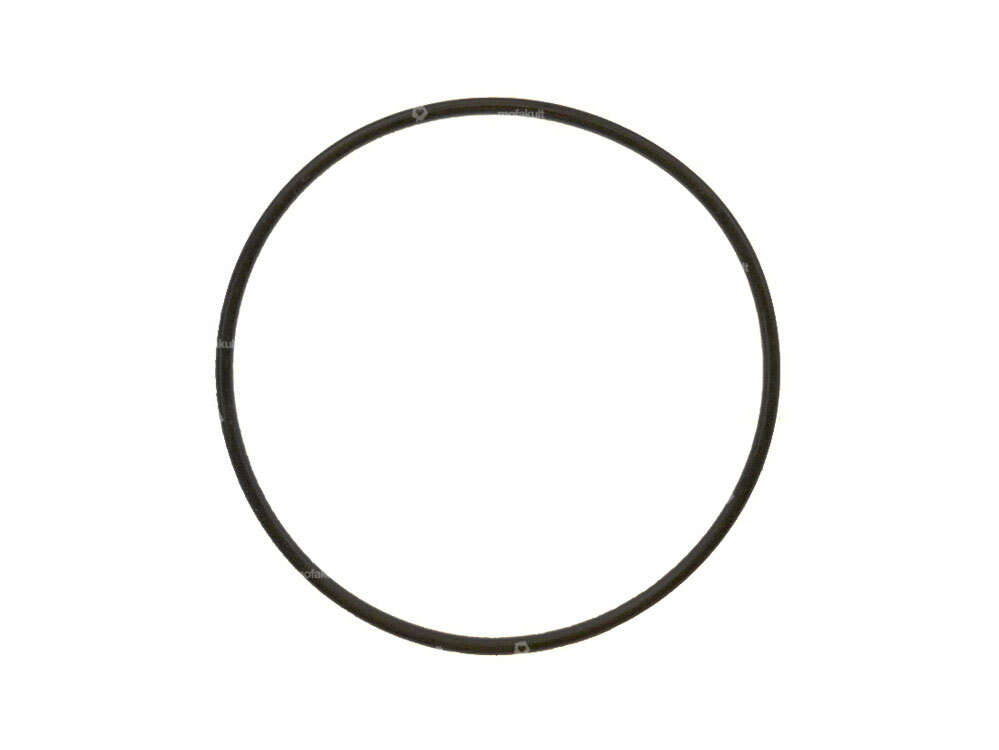

O-ring for racing and tuning cylinder heads of Puch Maxi S / N, Puch X30 Sport NS / NL, Puch X30 Sport N-2AH, Puch X30 Velux and converted Puch Supermaxi LG1 & LG2 mopeds / mopeds.
The sealing ring can only be used on cylinder heads with a corresponding groove. You can find a selection of these in the accessories section.
Ø inside: 44 mm
Cord thickness: 1.8 mm
Material: FPM / FKM (also known under the trademarked brand name VITON®)
Temperature-resistant: up to 200°C
Details
| Place of use | Cylinder head |
| Temperature resistance (min.) | 0 - 200 °C |
| Material | FPM - Fluororubber |
| Cord thickness | 1.8 mm |
| Ø inside | 44 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
