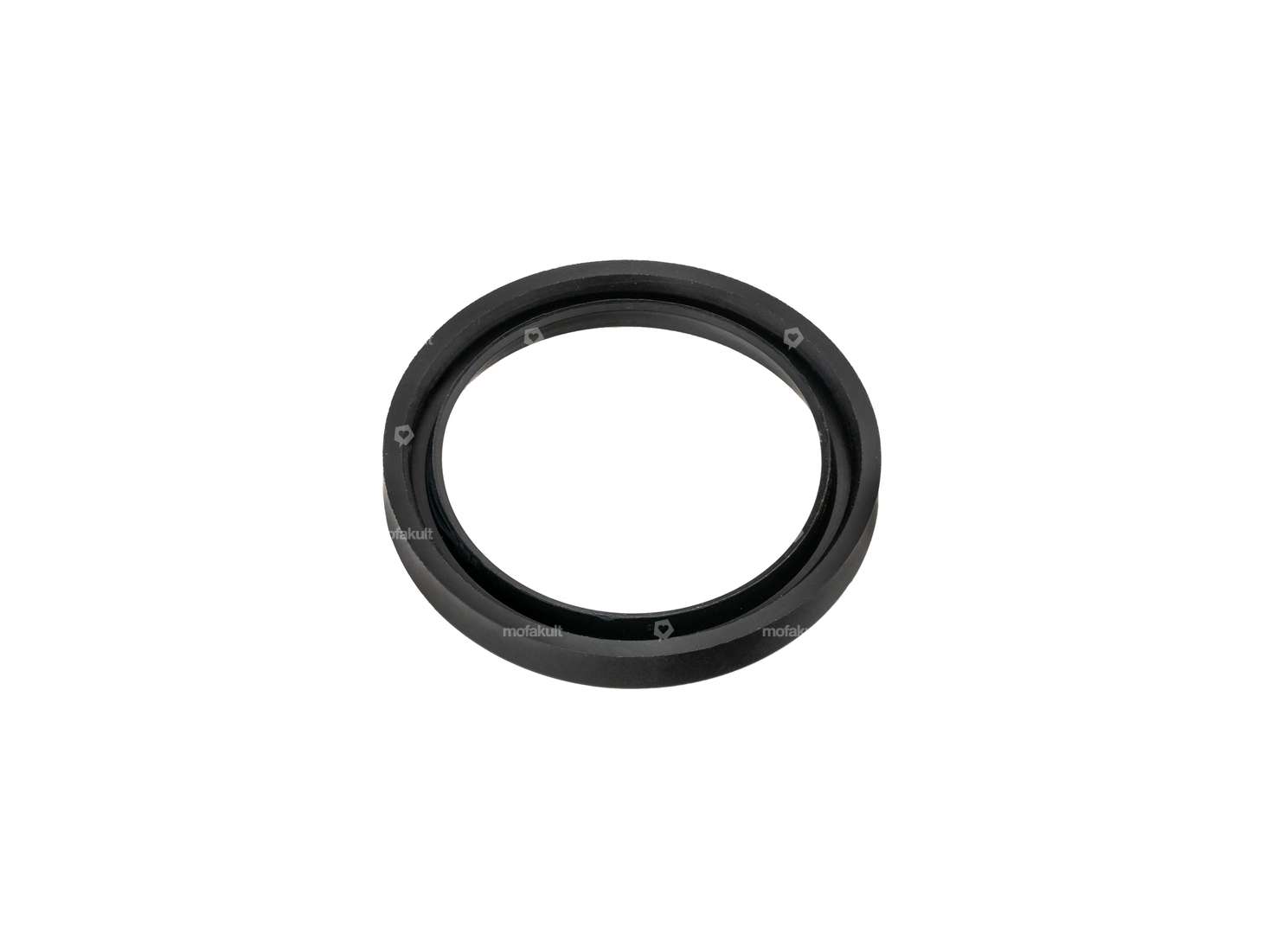

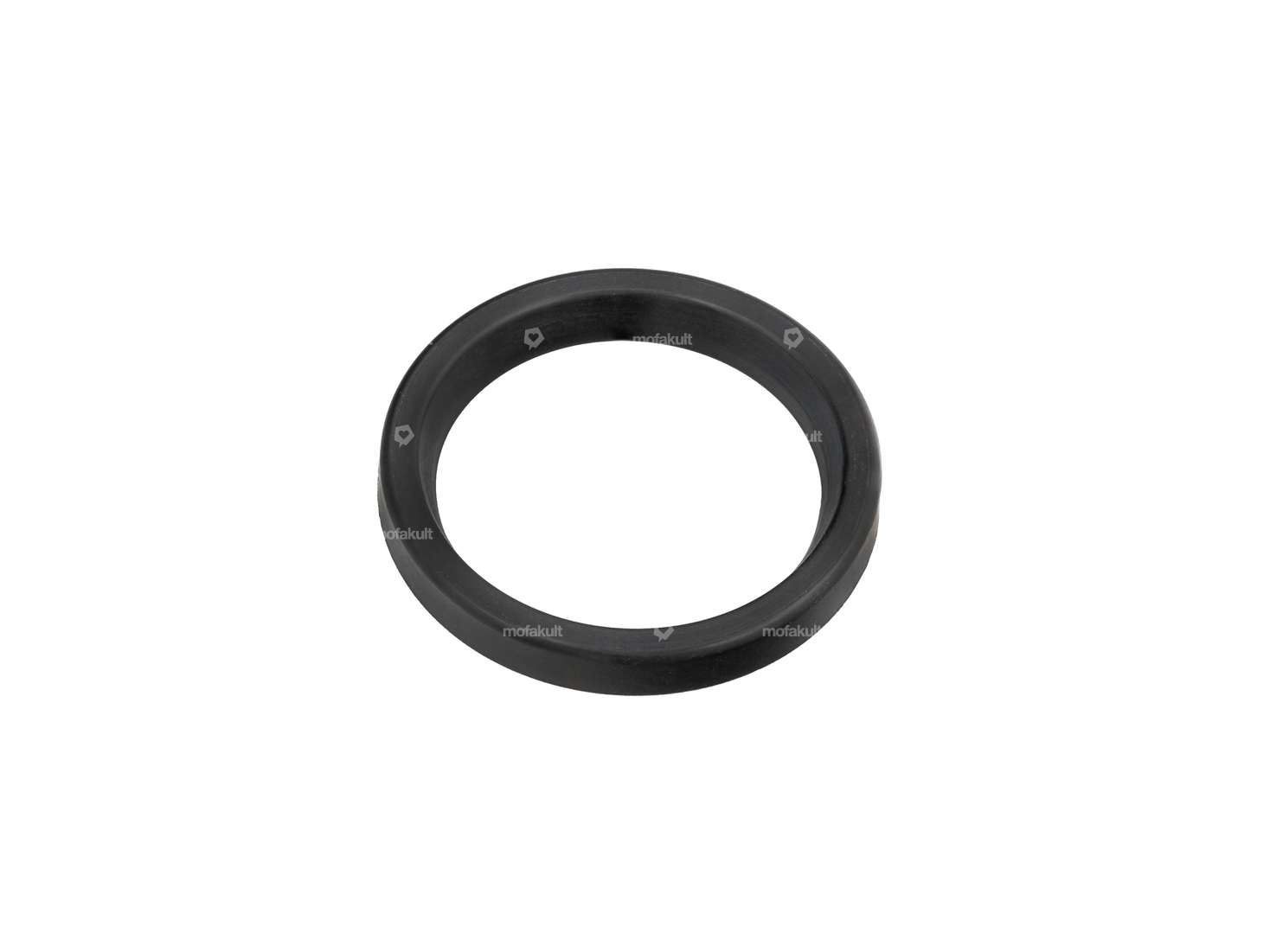

Shaft seal ring 24.8x31.4x4 mm for use on the starting mechanism for your Sachs 50, 50/2, 50/3, 50/4 engine on your moped & moped.
This radial shaft seal (also known under the trademarked brand name Simmerring®) is installed in the clutch cover on the feed-through for the brake shaft and the pedal start mechanism of Sachs engines.
Ø inside: 24.8 mm
Ø outside: 31.4 mm
Width: 4 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
Original Sachs spare part number: 0250 083 000
Details
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Sachs |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 24.8 mm |
| Ø outside | 31.4 mm |
| Place of use | Clutch cover |
| Width | 4 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 |
