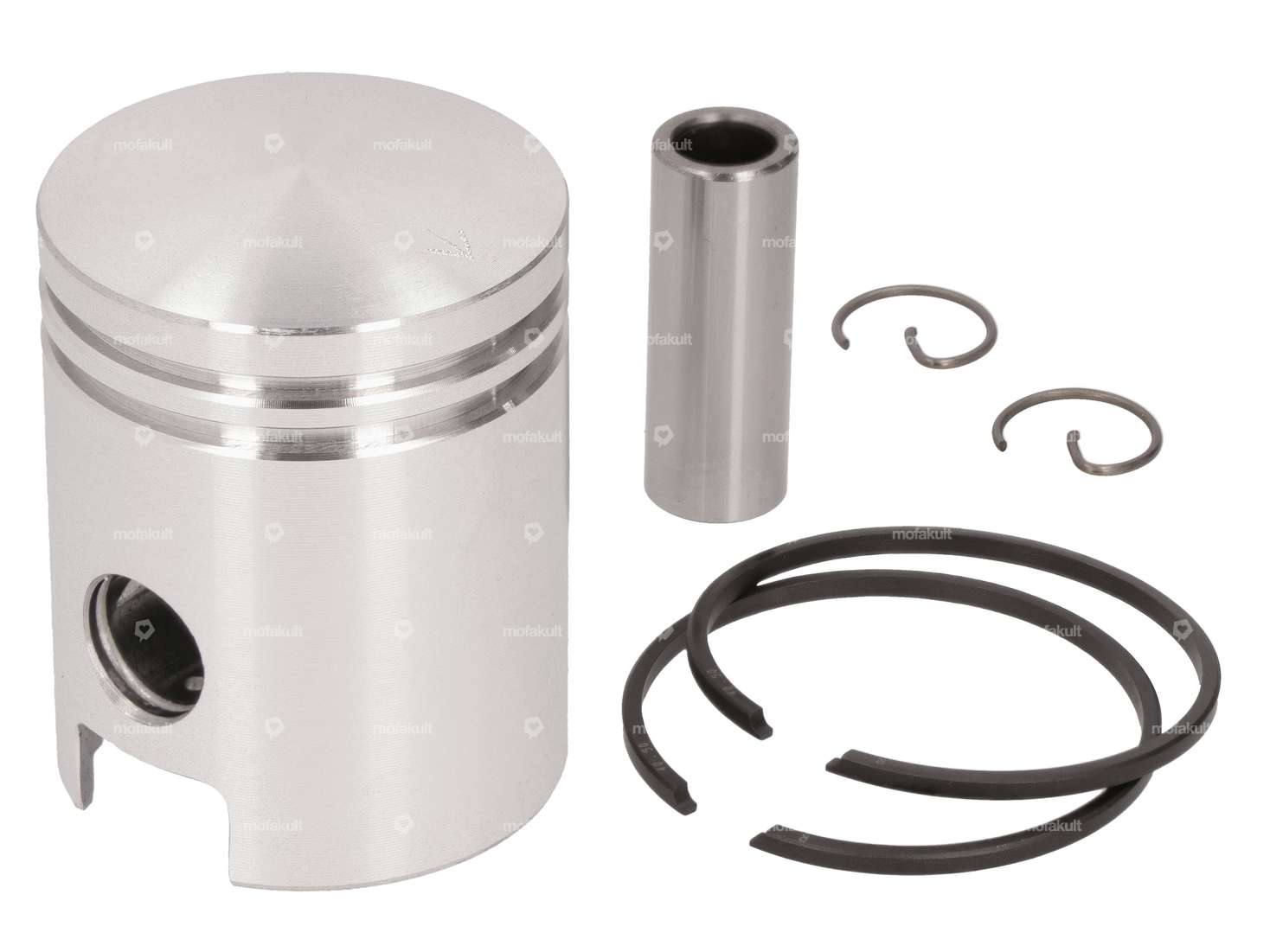

40 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Victoria EM50 moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains pistons, piston pins, piston clips and piston rings.
You can find the corresponding assembly tools, piston pin locks and alternative pins in the accessories section.
Details
| Ø outside piston (A) | 39.95 mm |
| Compression height (C) | 31 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 40 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
Suitable for the following models
| Victoria |
