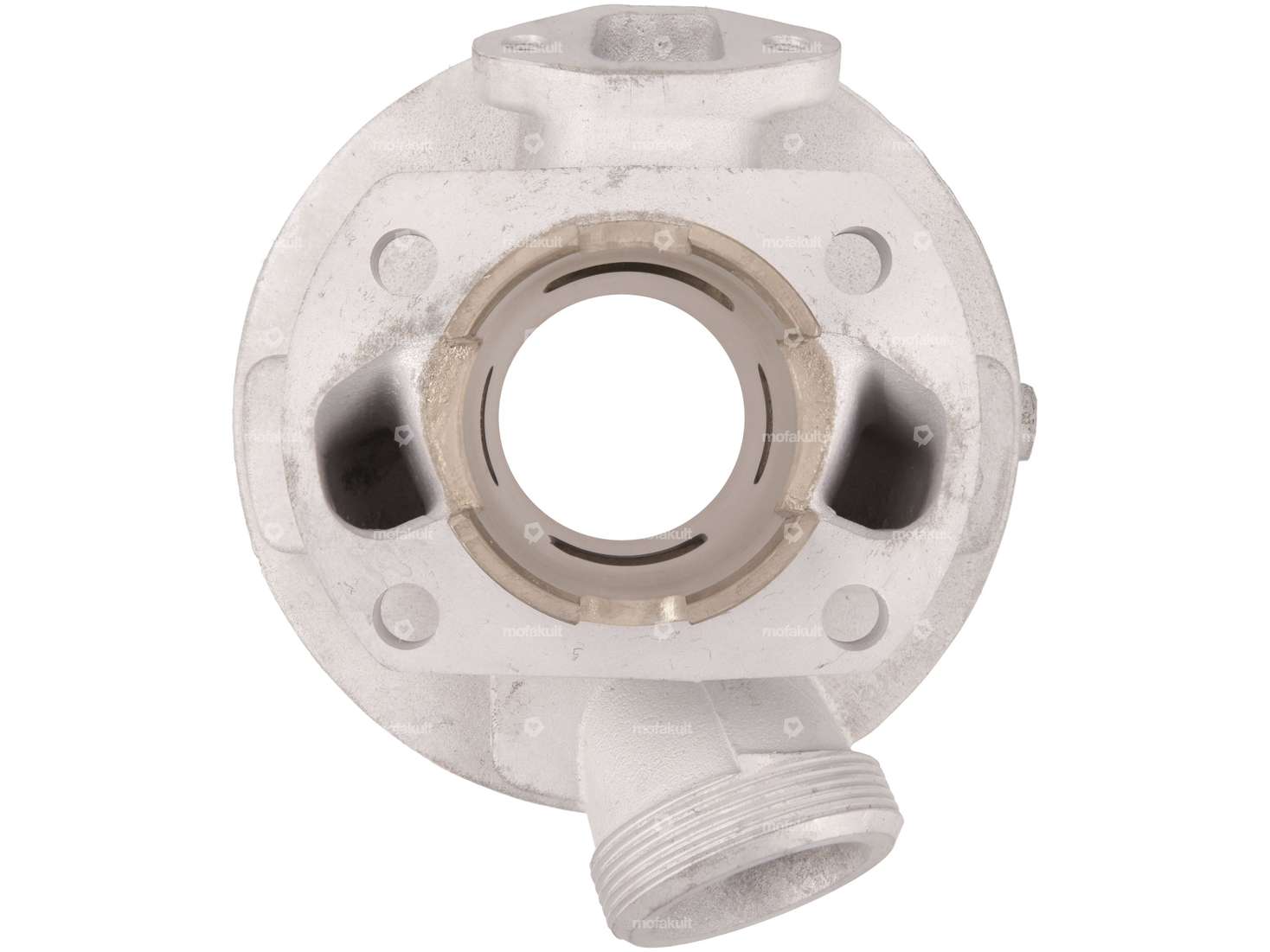

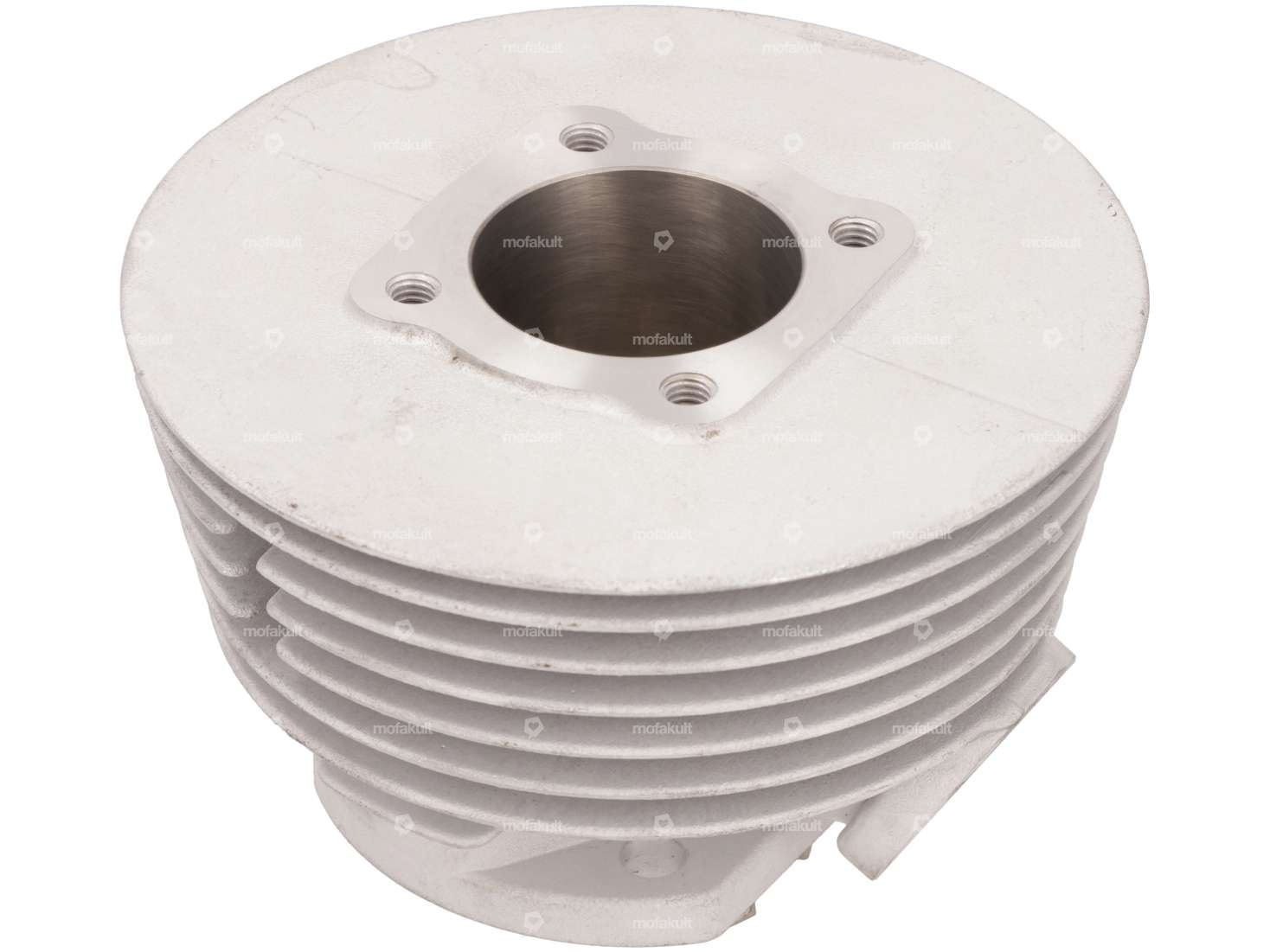

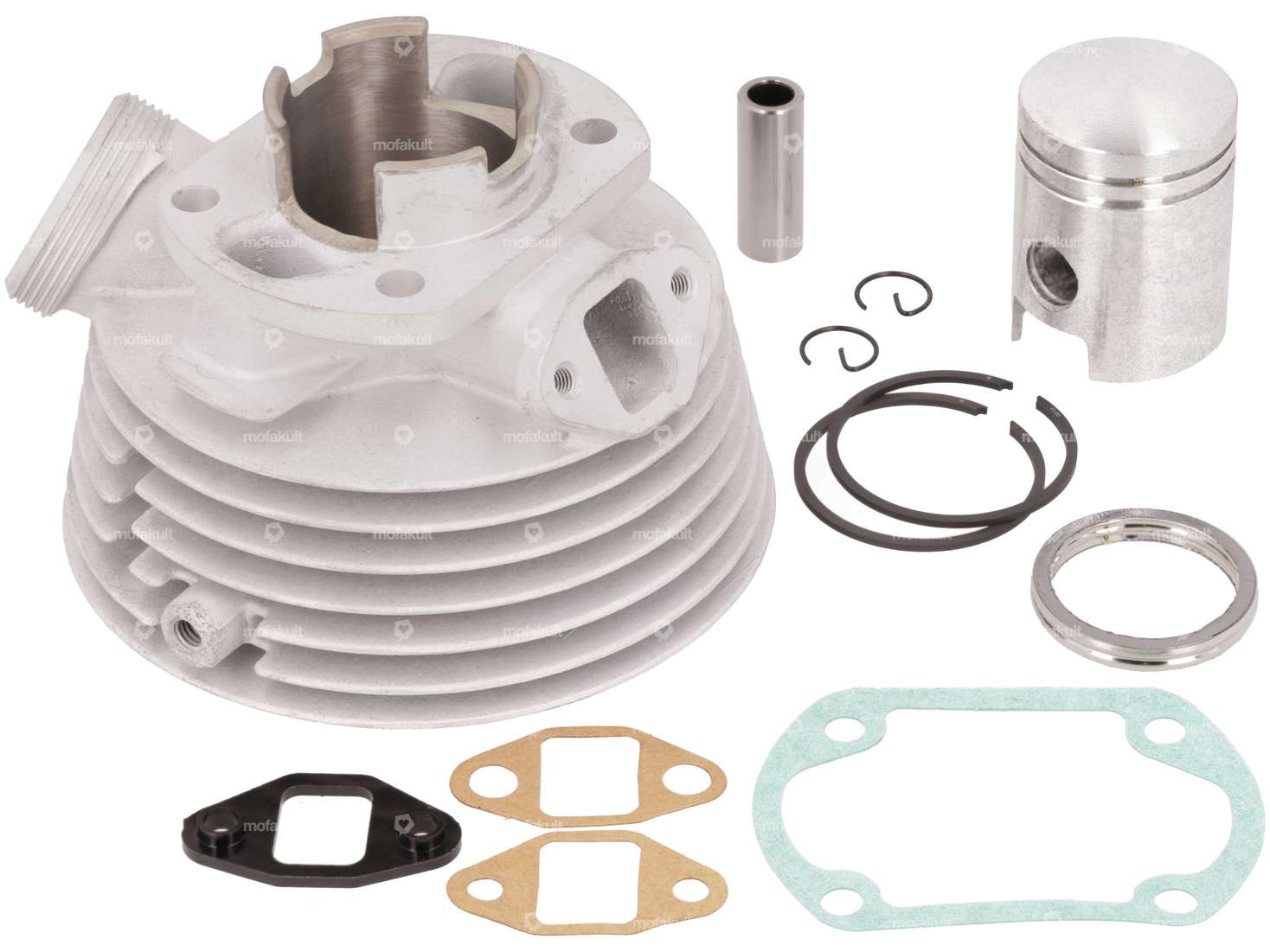

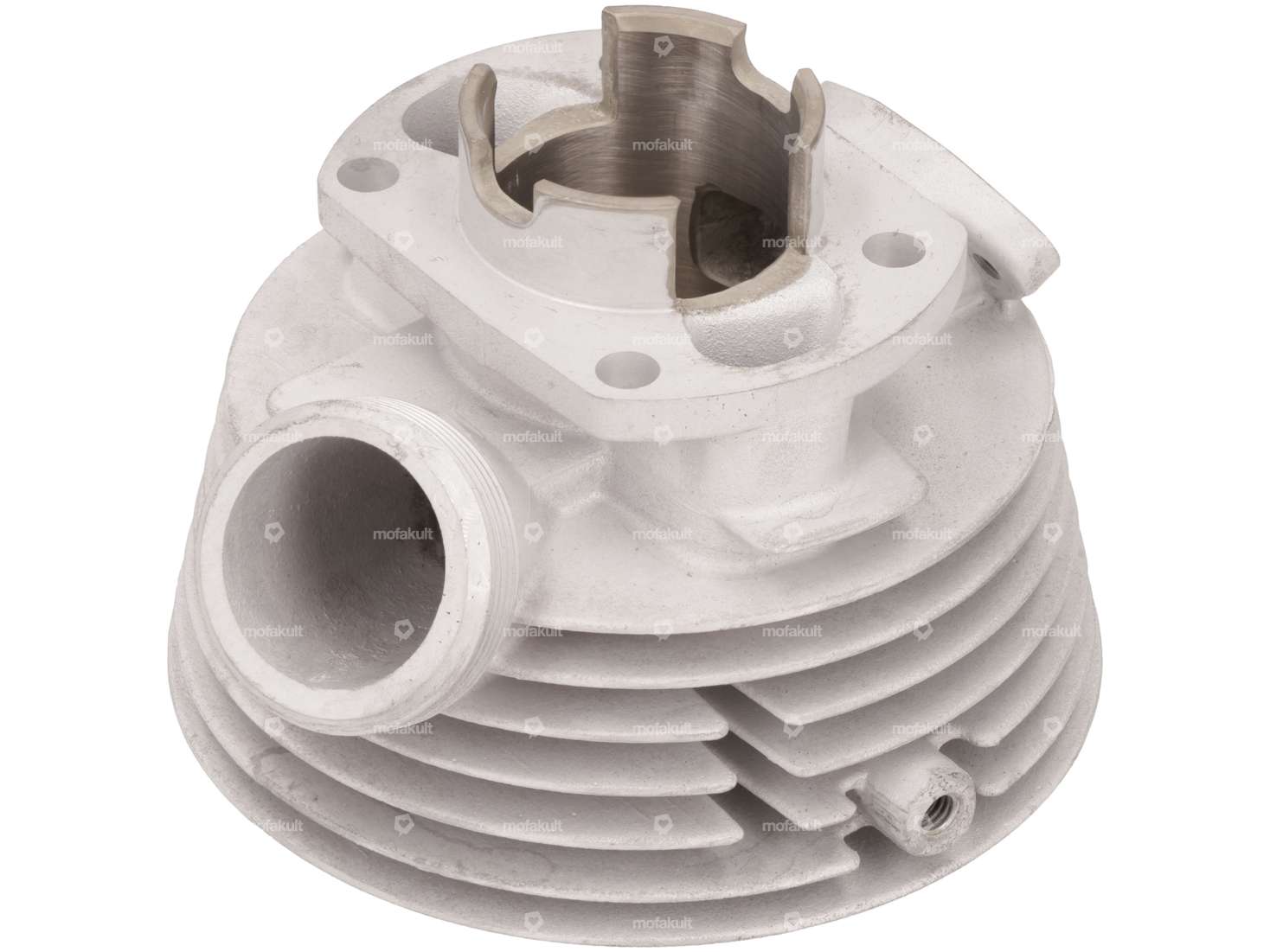

Complete 38 mm aluminum tuning cylinder with nickel-silicon carbide coating (also known under the trademarked brand name Nikasil®) and square inlet for small engines with Sachs 3- and 4-speed engines with foot shift. These engines were used on Hercules 50/3 LS 50/4 LKH, Gritzner etc.
The workmanship of the 50 cc racing cylinder is fine, but could do with some rework on some edges.
In order to be able to mount this racing kit on a Sachs 50/2 engine, various adjustments must be made.
Note: An exhaust nut with M40x1.5 mm thread is required.
The cylinder kit requires a 17 mm Bing SSB carburetor. You can find this and other add-on parts in the accessories section.
Details
| Material | Aluminum |
| Surface | Nickel silicon carbide (known as Nikasil®) |
| Manufacturer | Power1 |
| Camouflaged | No |
| Area of application | Tuning |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 44 mm |
| Hole spacing inlet | 31 mm |
| Inlet window | 16 x 18 |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Hole pattern [mm] | 51 x 40 / 37 x 37 |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products

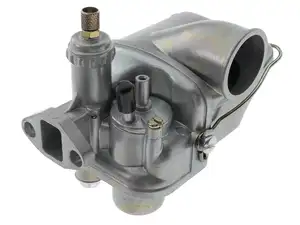

Carburetor 17 mm Bing SSB 1/17/69 reproduction
Material: Aluminum · Area of application: Standard · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Choke control: without choke · Nominal diameter: 17 mm · Nozzle size: 76 · Nozzle thread: MF7x0.75 (fine pitch thread) · Ø fuel hose connection: 6.2 mm · Height: 99 mm · Total length: 116 mm · Hole spacing inlet: 31 mm · Width: 86 mm · Mounting type: Stud bolts & nuts · Mixed oil connection: No · Vacuum connection: Yes · Camouflaged: No · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m
EUR 96.10

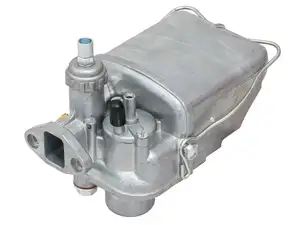

swiing carburetor 17 mm Bing SSB 1/17/69
