Repair manual for Puch X30 models.

This great catalog with 40 pages contains a lot of interesting facts about the X30. Many repairs are described.

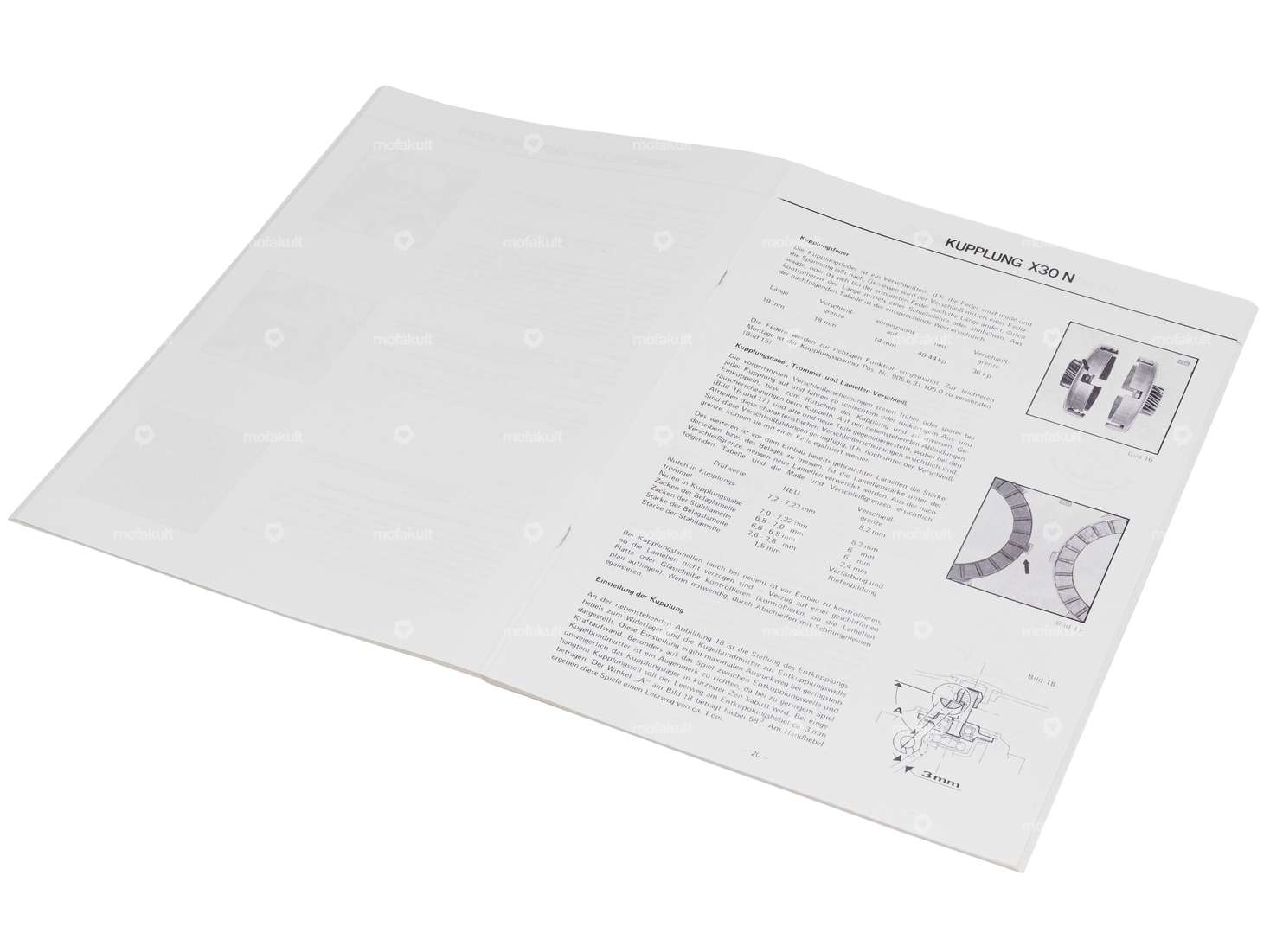

1-speed automatic and 2-speed manual engines are described with revision instructions, many pictures and important facts.
The following things are also described extensively: technical data, special tools, engine, inspection work, carburetor, frame, front fork, brakes, wheels and the electrical system.

I advise every Puch fan/wrench to read such a book once, you can always learn something new.

Details

Material	Paper
Number of pages	40 pcs
Language	German

Suitable for the following models

Puch

E50

Z50 (X30 Sport)
