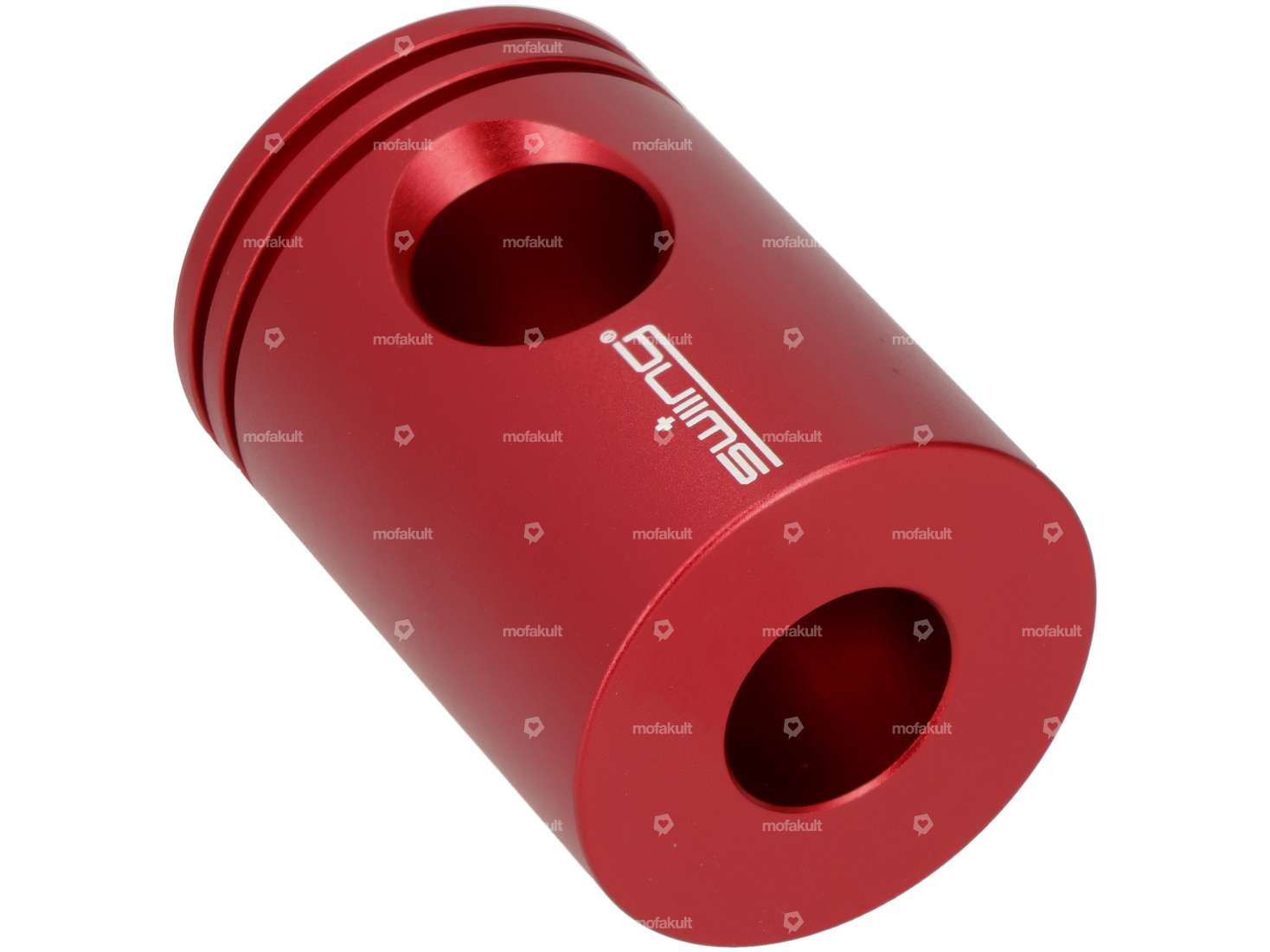

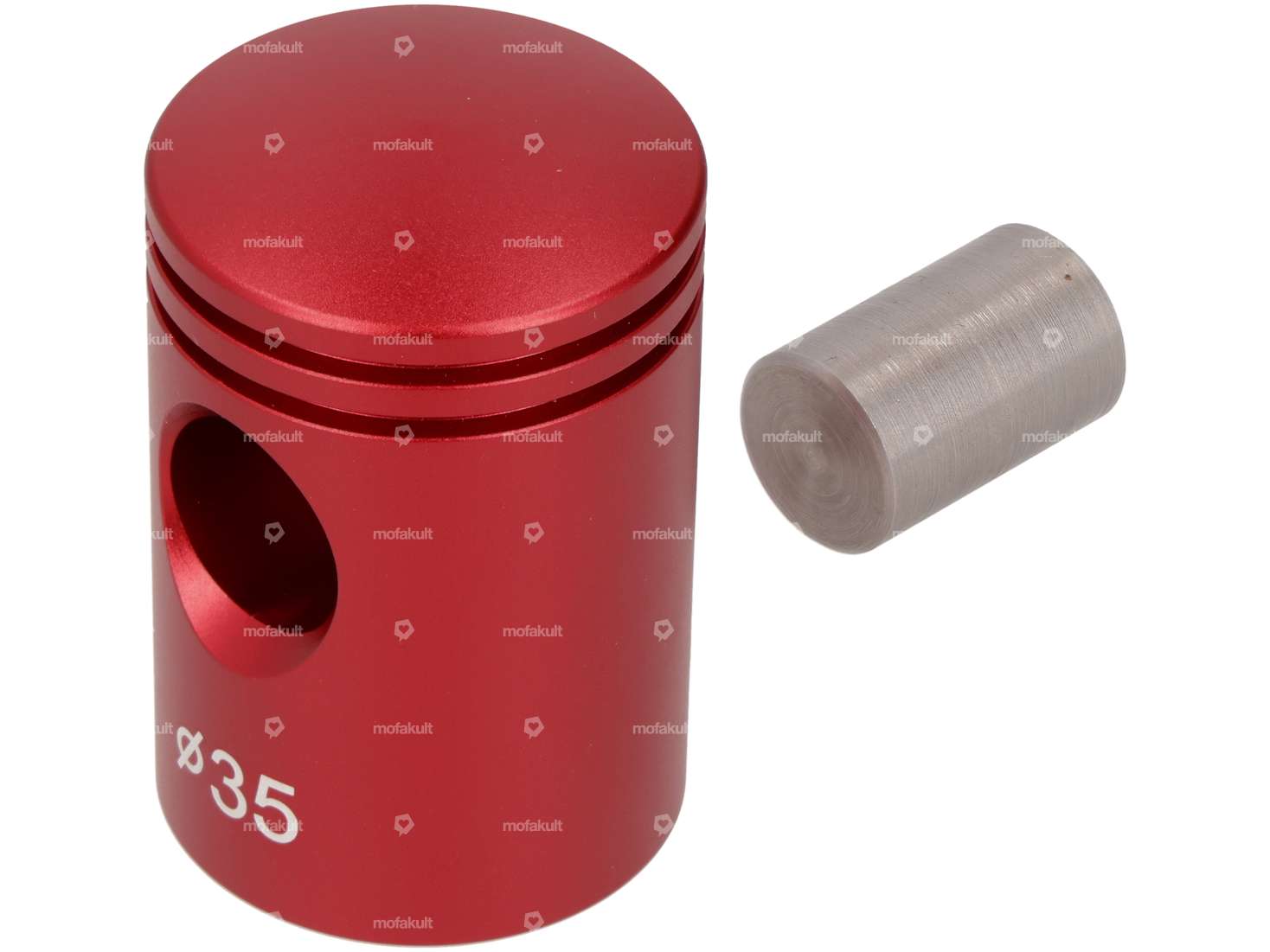

High-quality press-on mandrel in piston design for the proper pressing on of ball bearings on your moped, moped or small motorcycle.

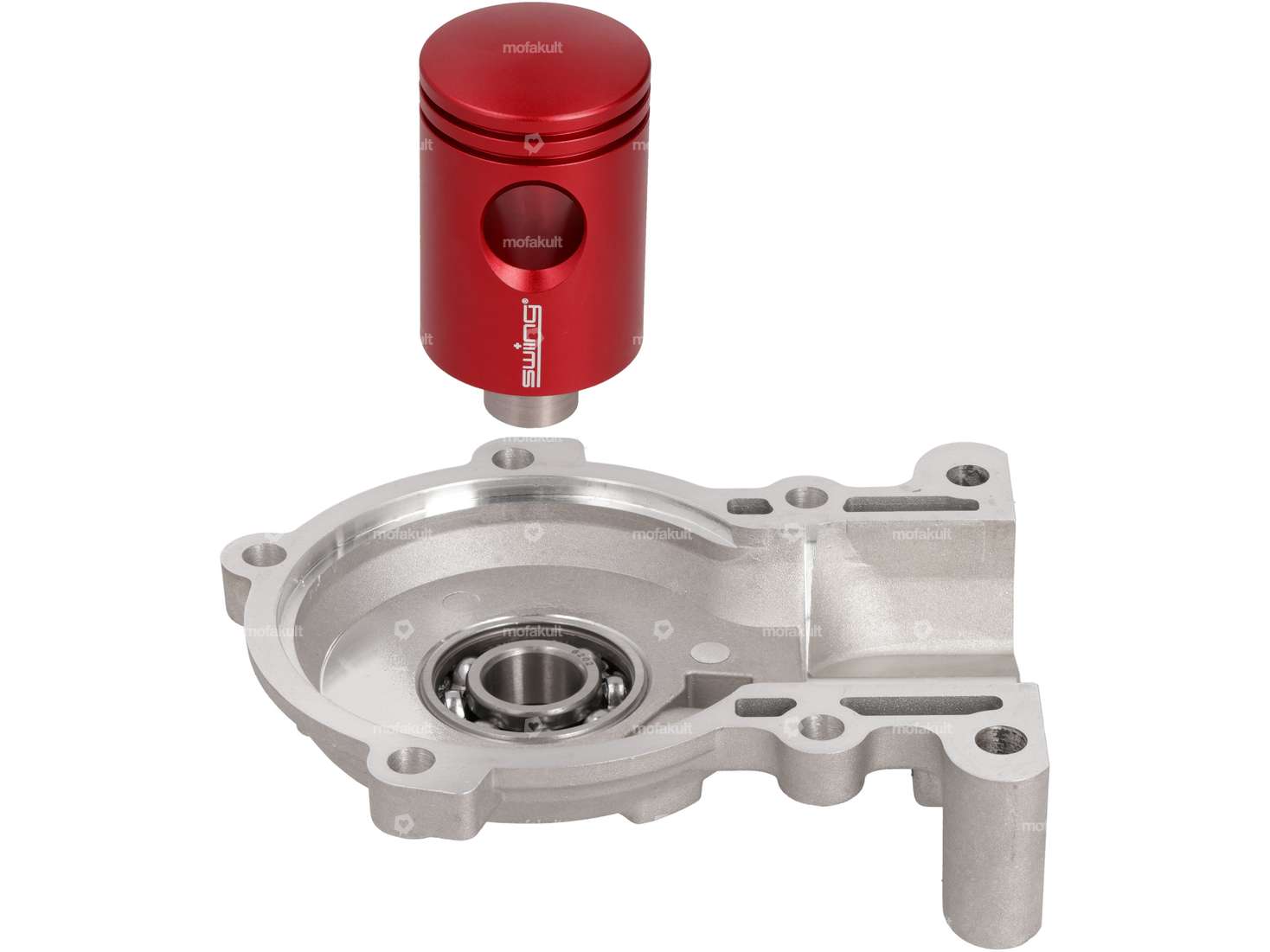

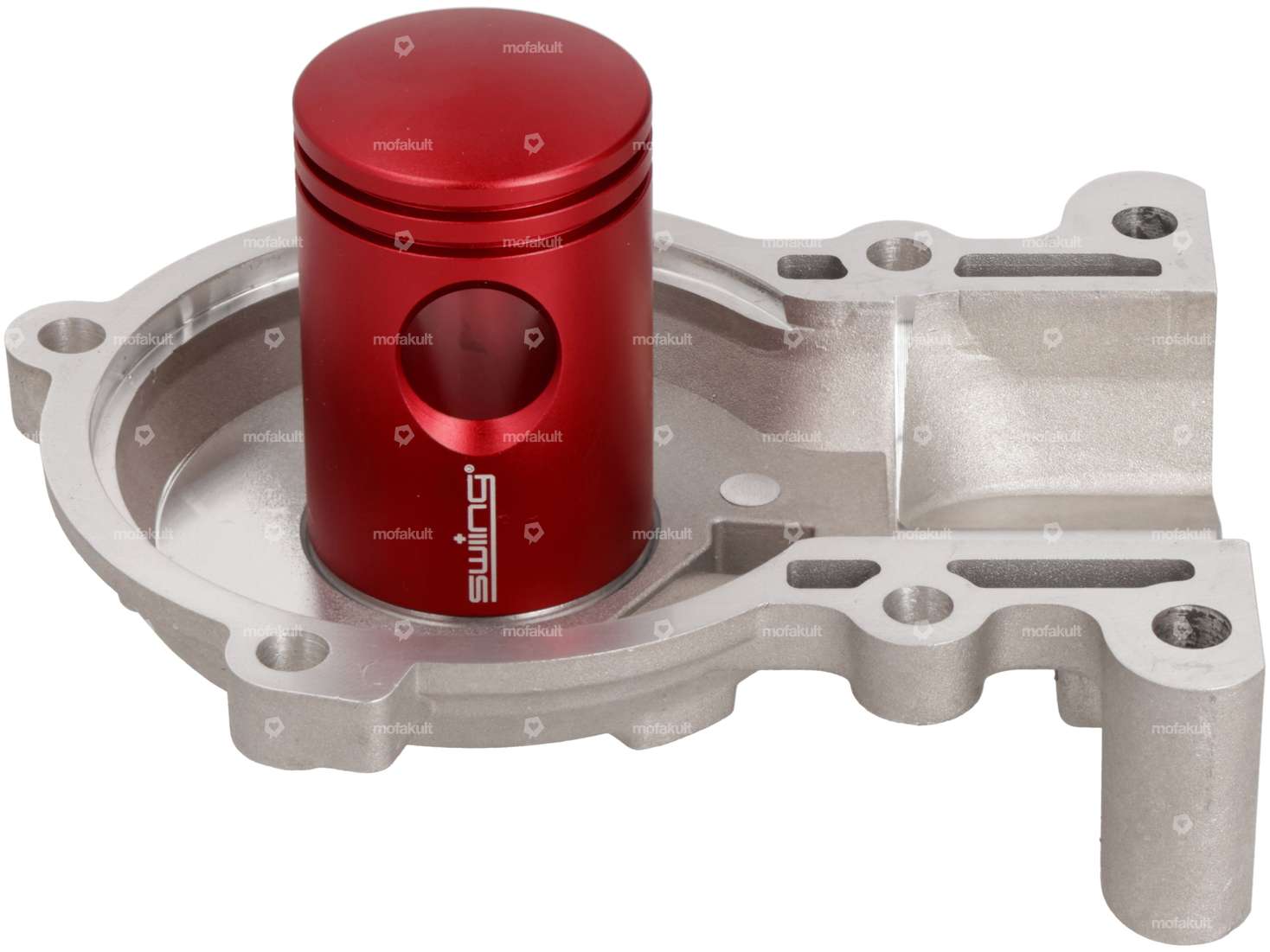

This special bearing press-fit mandrel made of red anodized aluminium is placed on the bearing during assembly. The ball bearings can then be placed precisely in their intended position by gently tapping the tool with a hammer. Thanks to the bolt supplied, slippage is prevented, ensuring even force distribution on the bearing.
Details
| Manufacturer | swiing® ingenious parts |
| Area of application | Special tool |
| Material | Aluminum, Steel |
| Surface | anodized |
| Number of components | 2 pcs |
| Ø outside | 35 mm |
| Ø inside | 15 mm |
| Total length | 52.5 mm |
| Ø Pin | 15 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio | |
| Zündapp Belmondo | |
| Tomos | |
| Cilo |
Accessories & related products
CUBE 6202 2RS ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Stock number: 6202 · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 35 mm · Ø inside: 15 mm
EUR 5.65
CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo
Bearing type: Deep groove ball bearing · Stock number: 6202 · Width: 11 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Ø inside: 15 mm · Ø outside: 35 mm
EUR 5.65
SKF 6202 C4 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Stock number: 6202 · Width: 11 mm · Ø inside: 15 mm · Ball bearing closed: No · Manufacturer: SKF · Ø outside: 35 mm · Bearing clearance: C4 · Bearing cage: Plastic cage ball-guided · Material: Steel · Area of application: Standard
EUR 16.70
Not in stock

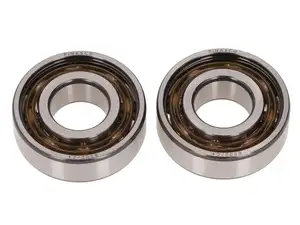

Pinasco 6202 T9 C4 ball bearing 15/35/11 polyamide cage pair
