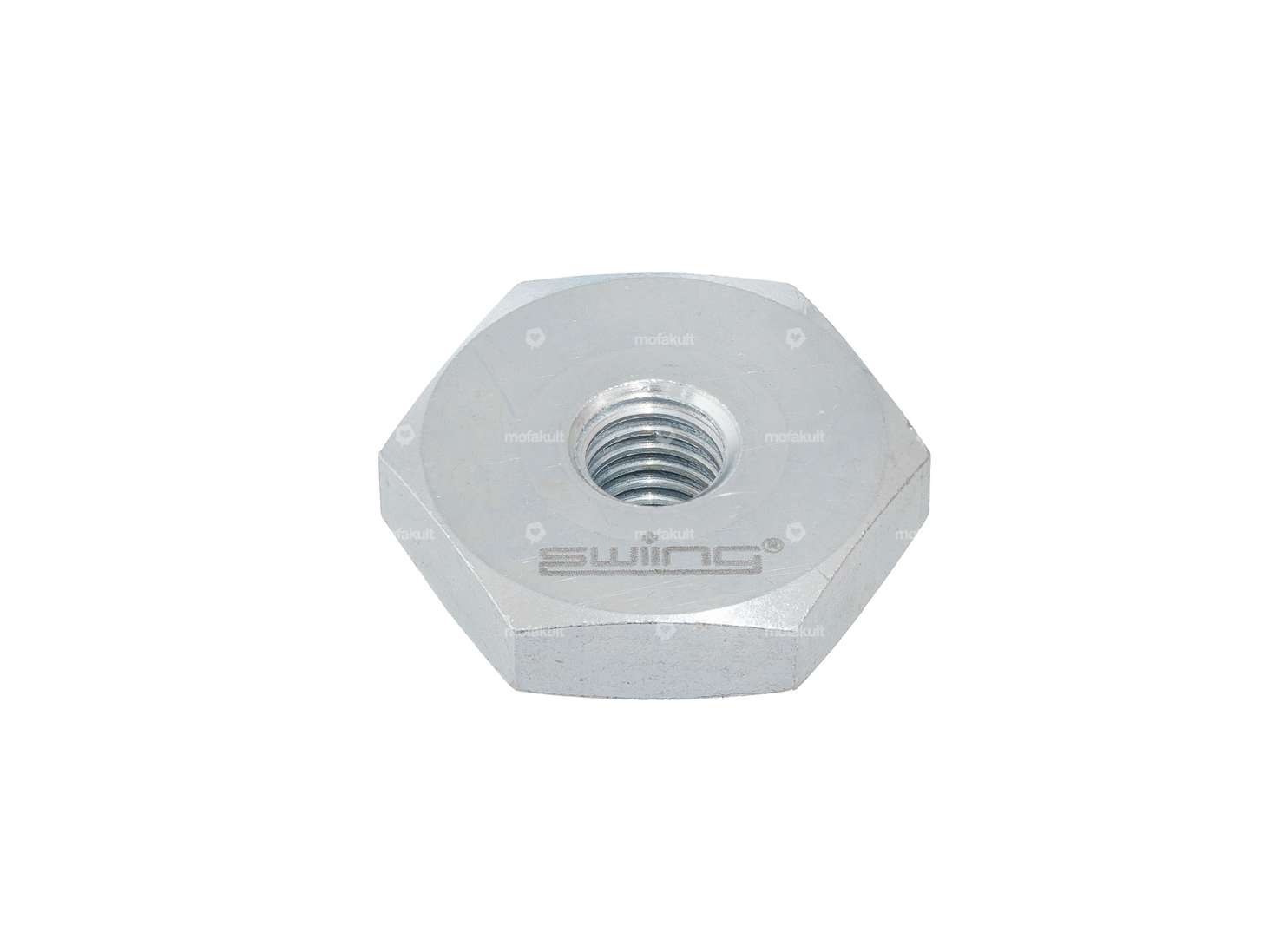

Special nut for mounting the variomatic unit on the crankshaft of Piaggio Ciao, Si, Bravo, Boxer mopeds / mopeds.

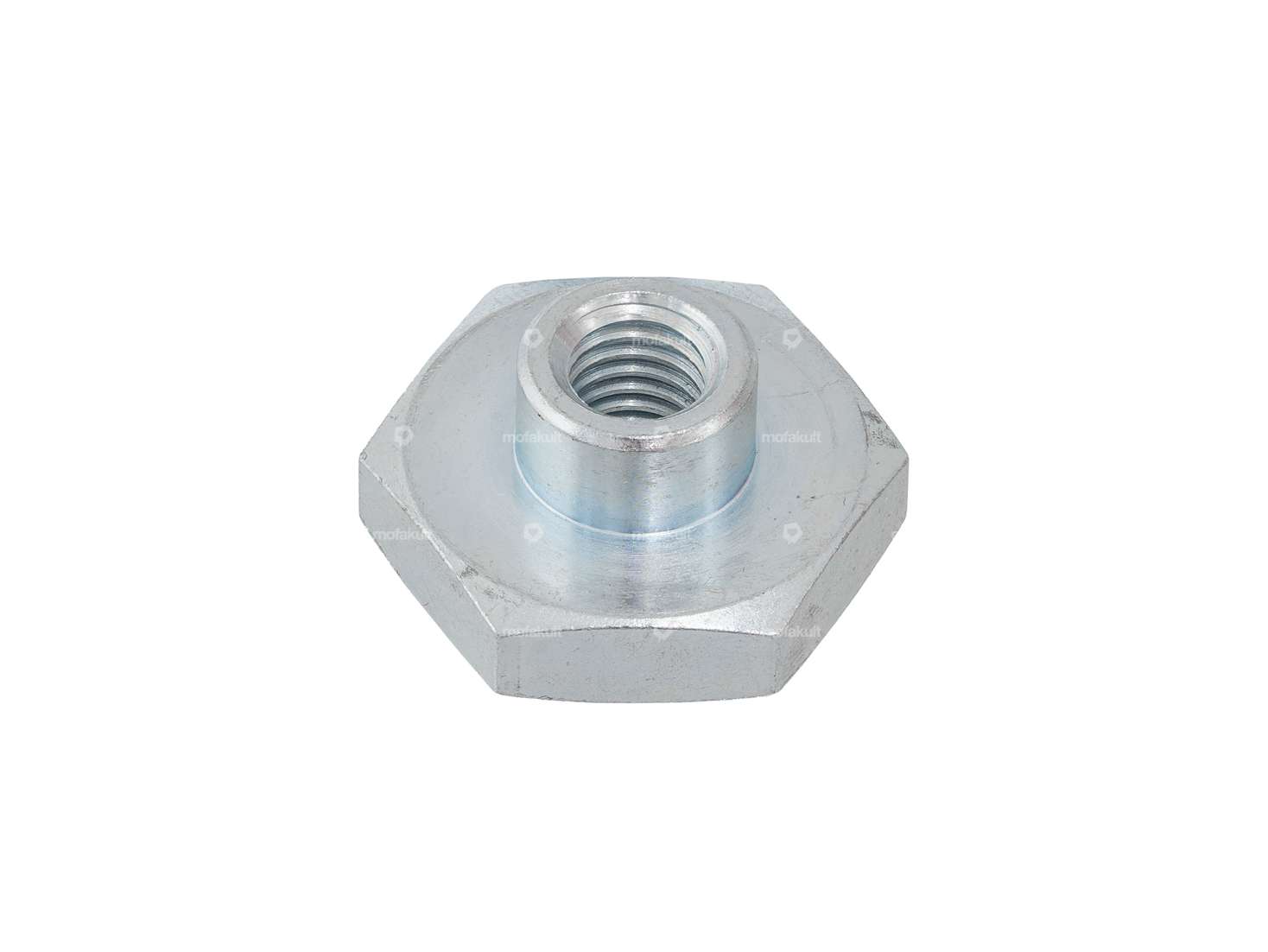

The vario nut is provided with a shoulder on the underside. This fits perfectly into the guide bushes of the variomatic unit.

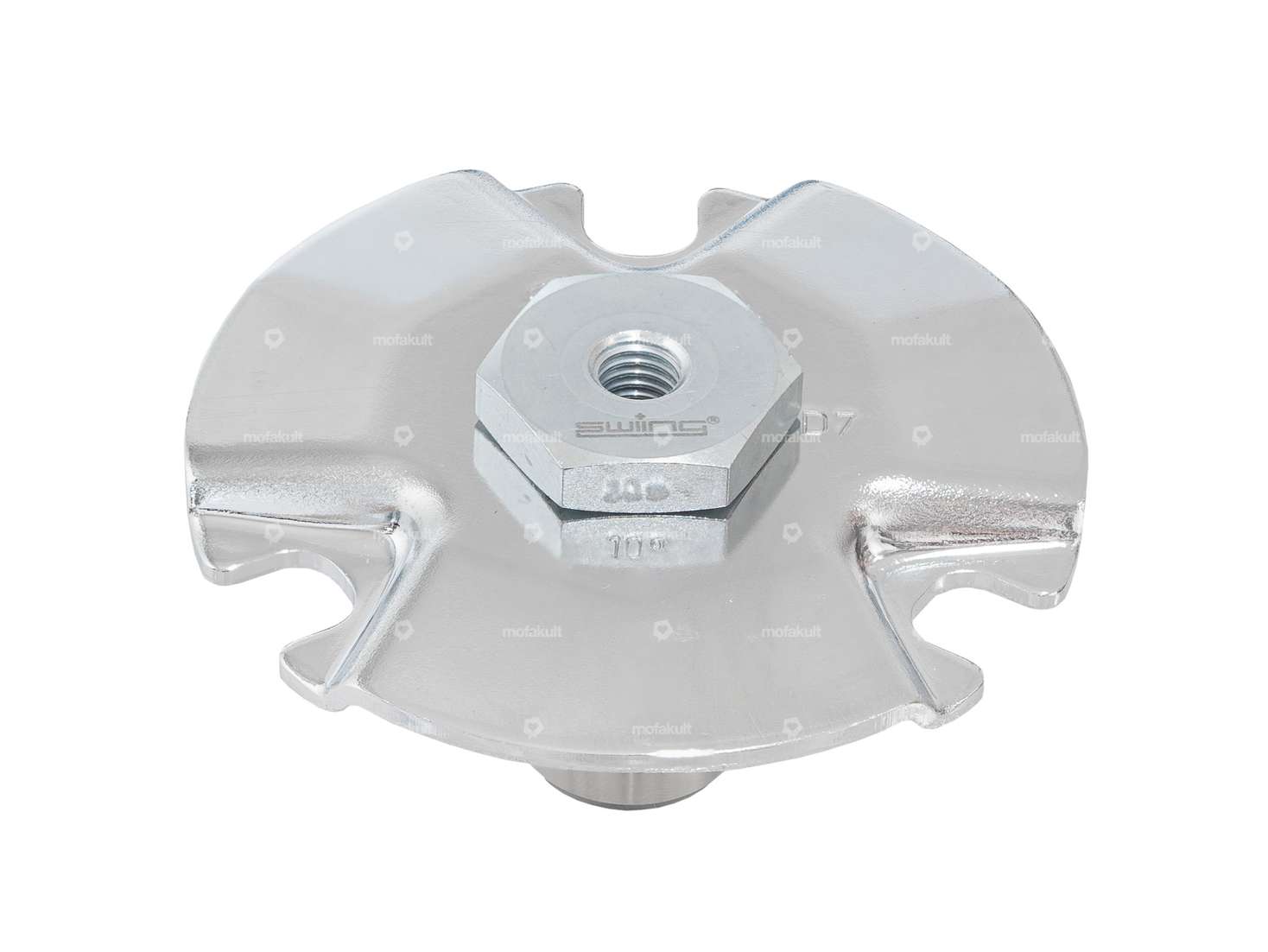

With the help of this nut, the variomatic unit is perfectly centered on the crankshaft.
Details
Drive | External hexagon |
Width across flats SW | 24 mm |
Manufacturer | swiing® ingenious parts |
Material | Steel |
Surface | galvanized (blue) |
Thread type | M8x1.25 (standard thread) |
Height | 6 mm |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
